1 Introduction

Power Supply Socket

The power socket is located on the rear panel of the switch. The standard power socket is for the AC power cord.

100-240V ~50-60Hz 0.8A

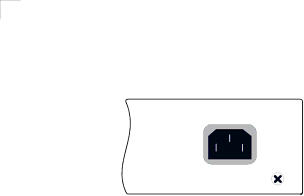

Figure 1-4 Power Supply Socket

Features and Benefits

Connectivity

•24 10/100/1000 Mbps ports for easy Gigabit Ethernet integration and for protection of your investment in legacy LAN equipment.

•Auto-negotiation enables each RJ-45 port to automatically select the optimum communication mode (half or full duplex) if this feature is supported by the attached device; otherwise the port can be configured manually.

•RJ-45 10/100/1000BASE-T ports support auto MDI/MDI-X pinout selection.

•Unshielded (UTP) cable supported on all RJ-45 ports: Category 3 or better for 10 Mbps connections, Category 5 or better for 100 Mbps connections, and Category 5, 5e, 6 or better for 1000 Mbps connections.

•IEEE 802.3-2005 Ethernet, Fast Ethernet, and Gigabit Ethernet.

Expandability

•Four Small Form Factor Pluggable (SFP) transceiver slots (shared with 1000BASE-T ports)

•Supports 1000BASE-SX, 1000BASE-LX and 1000BASE-LH SFP transceivers.

Performance

•Transparent bridging.

•Provides store-and-forward switching.

•Jumbo-Frame up to 9,6 Kbytes

•Supports flow control

•Broadcast storm control

1-4
