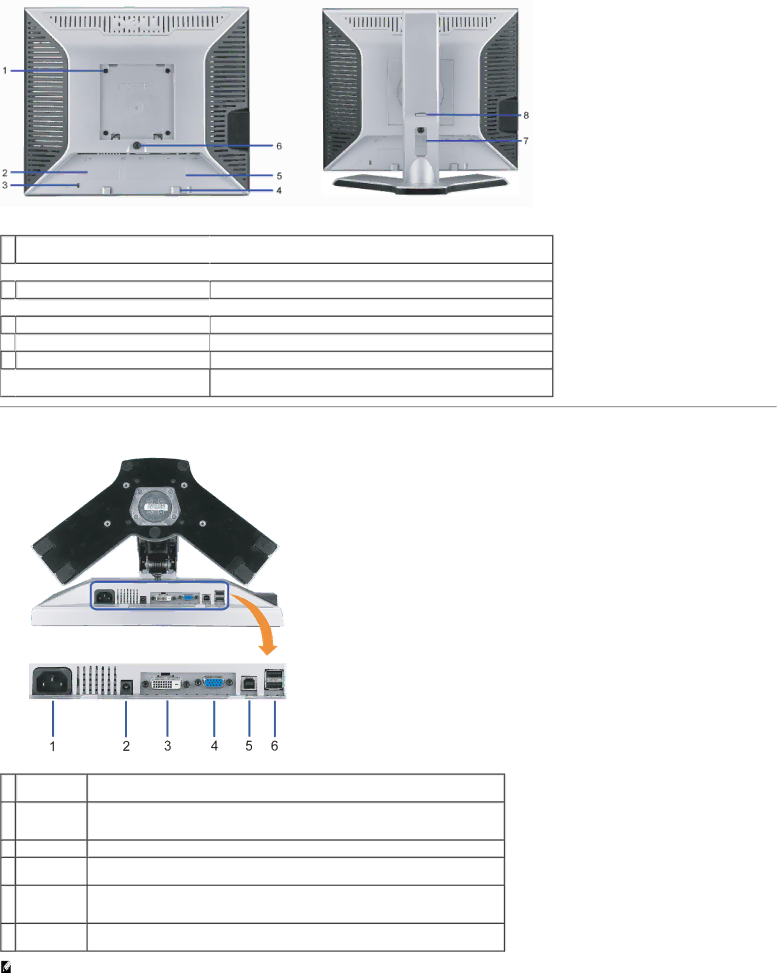

1VESA mounting holes (100mm) (Behind attached base plate)
2
Barcode serial number label
3
Security lock slot
4
Dell Soundbar mounting brackets
5
Regulatory rating label
6
Stand removal button
7
Cable management hole
8
Lock down/release button
Use to mount the monitor.
Refer to this label if you need to contact Dell for technical support.
Use a security lock with the slot to help secure your monitor.
Attach the optional Dell Soundbar.
List the regulatory approvals.
Press to release the stand.
Help organize cables by placing them through the hole.
Push the monitor down, press the button to unlock the monitor, and then lift the monitor to the desired height.
Bottom View
1 | Power | Insert the power cable. |
| connector |
|
2 | Dell Soundbar | Connect the power cord for the Soundbar (optional). |
| power |
|
| connector |
|
3 | DVI connector | Connect your computer DVI cable. |
4 | VGA | Connect your computer VGA cable. |
| connector |
|
5 | USB upstream | Connect the USB cable that came with your monitor to the monitor and the computer. |
| connector | Once this cable is connected you can use the USB connectors on the side and bottom of the |
|
| monitor. |
6 | USB | Connect your USB devices. |
| connector |
|
