Welcome Screen

When you connect, the following screen will be displayed.

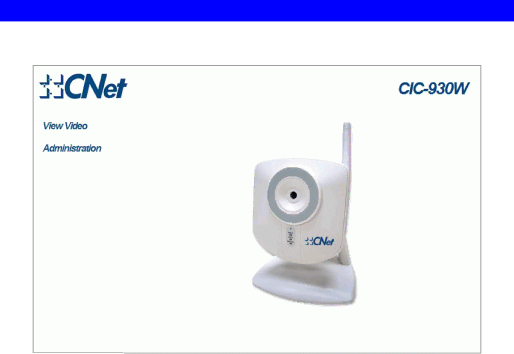

Figure 23: Welcome Screen

The menu options available from this screen are:

•View Video - View live Video using your Web Browser. See Chapter 3 - Viewing Live Video for details.

•Administration - Access the Administration menu.

29
