Linksys BEFSR41, BEFSRU31 manual Instant Broadband Series

Page 17

Instant Broadband™ Series

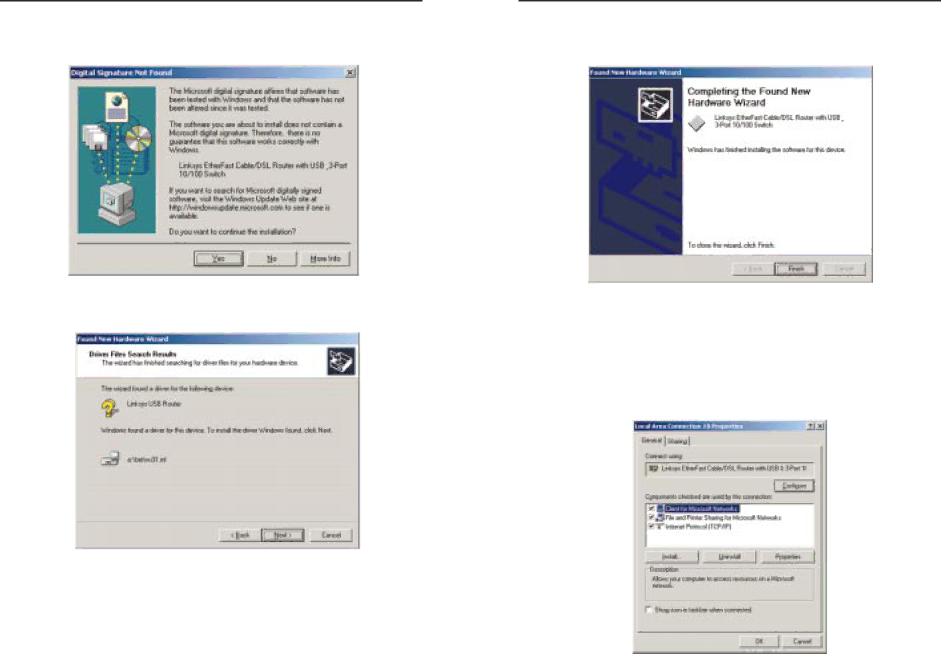

5.When the Digital Signature Not Found screen appears, Windows will ask you if you want to continue with the installation. Click the Yes button.

6. Click the Next button for Windows to copy the driver files to your PC.

EtherFast® Cable/DSL Routers

7.Windows will display a message saying that it has finished installing the driver files on your PC. Click the Finish button to complete the installation.

8.Go to the Start button, and select the Settings option. Then select the Network and Dial-up Connections option, and click the Local Area Connection icon. Click the Properties button to display the screen below. Highlight Internet Protocol (TCP/IP) as shown below, and click on the Properties button. Make sure that TCP/IP is set to Obtain an IP Address Automatically.

27

28

Image 17
