Linksys BEFSR41 Crimping Your Own Network Cables, Straight-Through Cabling Cross-Over Cabling

Page 45

Instant Broadband™ Series

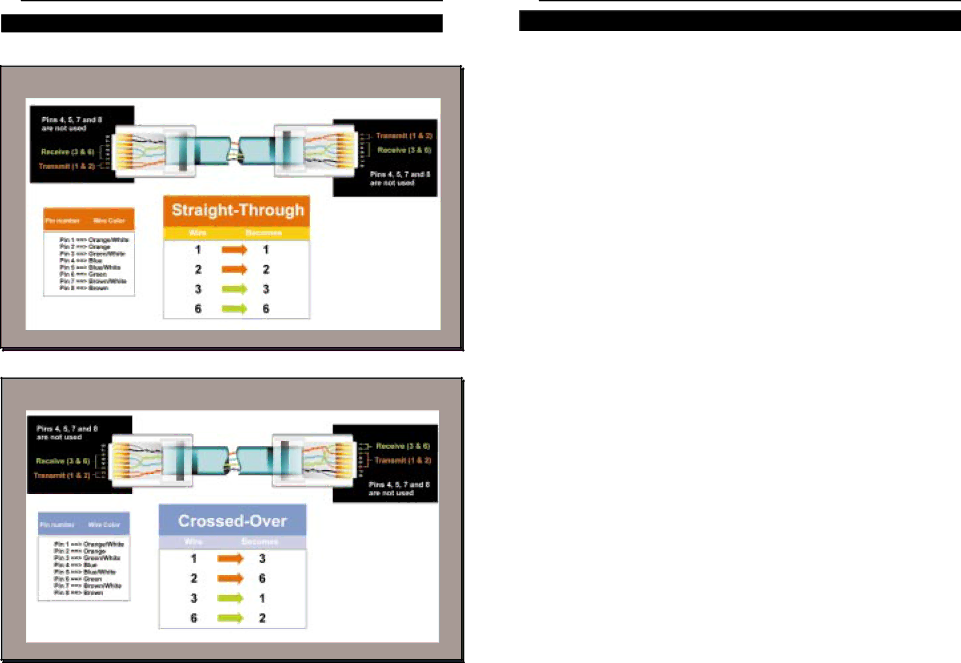

Crimping Your Own Network Cables

•Straight-Through Cabling

•Cross-Over Cabling

EtherFast® Cable/DSL Routers

4-Port Router Specifications

Model Number	BEFSR41 v2
Standards	IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseTX)
Protocol	CSMA/CD
Ports
LAN:	Four 10/100 RJ-45 switched ports
WAN:	One 10Base-T Ethernet RJ-45 port for the cable or
	DSL modem
Speed
LAN:	10/100Mbps
WAN:	10Mbps
Cabling Type
10BaseT:	UTP Category 3 or better
100BaseTX:	UTP Category 5 or better
Topology	Star
LED Indicators	Power,
LAN:	Link/Act, Full/Coll, 100
WAN:	Link, Act, Diag

4-Port Environmental Specifications
Dimensions	7.31" x 6.16" x 1.88" (186mm x 154mm x 48mm)
Unit Weight	13.4 oz. (0.42 kg)
Power Input	External, 9V AC, 1 Amp
Certifications	FCC Class B, CE Mark Commercial
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Humidity	10% to 85%, Non-condensing
Storage Humidity	5% to 90%, Non-condensing

83

84
