Jumper/Header Name

Function

Definition











GND:GND











GND:GND

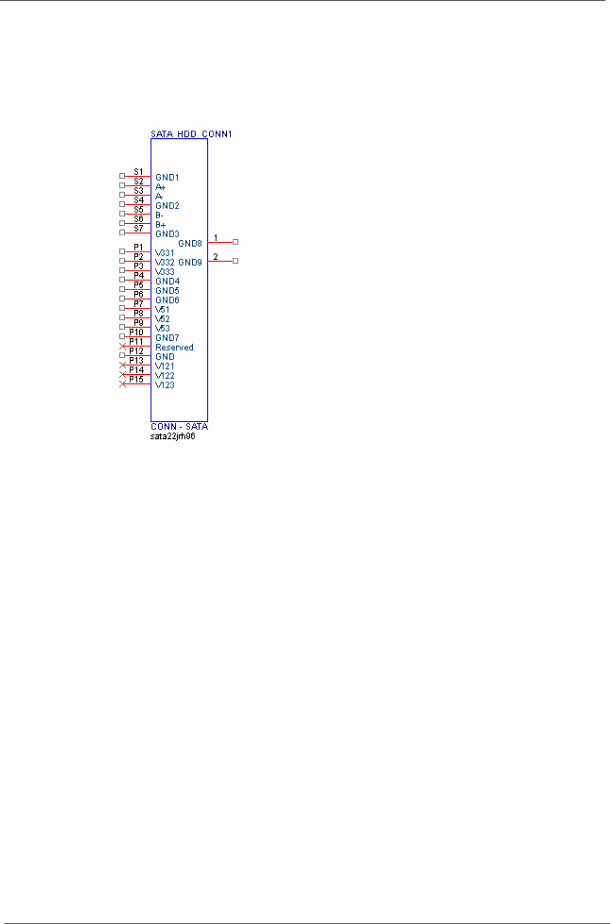

SATA CONN1

S1:GND











S2:STX_DP0_C











S3:STX_DN0_C











S4:GND











S5:SRX_DN0_C











S6:SRX_DP0_C











S7:GND











P1:3D3V_S0











P2:3D3V_S0











P3:3D3V_S0











P4:GND











P5:GND











P6:GND











P7:VCC5_SATA_HD





D











P8:VCC5_SATA_HD





D











P9:VCC5_SATA_HD





D











P10:GND











P11:NC











P12:GND











P13:NC











P14:NC











P15:NC









Card reader

SD-1:SD_DAT3











SD-2:SD_CMD











SD-3:GND











SD-4:CARD_3V3











SD-5:SD_CLK











SD-6:GND











SD-7:MS_SD_DAT0











SD-8:SD_DAT1
