Page 33

Feed Modes

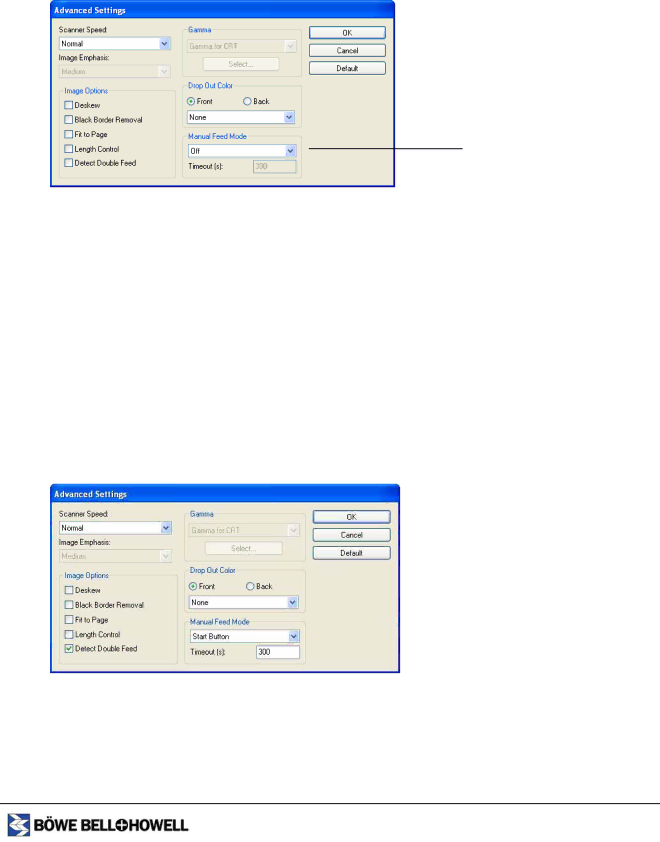

If the Scan Application (such as Capio™) supports the Advanced Scanner Settings, the scanner can be configured in either Automatic, Manual or Wait for Start feed modes via operator selection of the Advanced Settings - Manual Feed Mode.

Manual Feed Mode

Automatic Document Feeding –Default mode-

Set Manual feed Mode selection to Off.

Load the documents in the scanner and click the Start Batch button (or button with similar name) in the Scan Application to start scanning the batch of document from the application. The scanner paper feed rollers will automatically start and stop to feed the documents in the scanner. This is the standard mode of operation.

Manual Feed

Set Manual feed Mode selection to On.

Click the Start Batch button (or button with similar name) in the Scan Application and start feeding manually the batch of documents one by one in the feed rollers. As the lead edge of a document comes close to the feed rollers, the paper feed rollers will automatically start and feed the document in the scanner.

Use this mode when feeding mixed document types that are difficult to separate and typically cause multi-feed problems.

Wait for Start to Feed

Set Manual feed Mode selection to Start Button.

In this mode, the operator can manually control the START and the STOP of a batch using the Stop/Start button.

32
