SyncMaster 760TFT/ 760VTFT

Connecting

Your Monitor

Installing the

Monitor Driver

Installing VESA compliant mounting

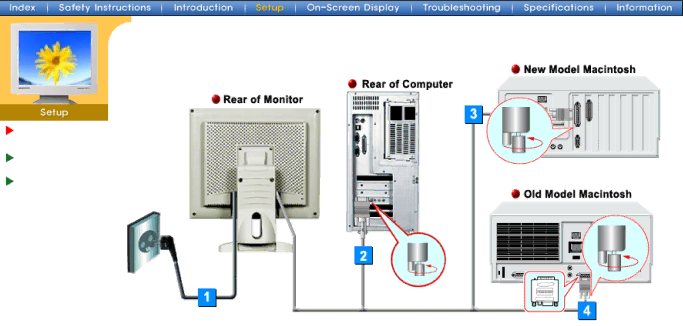

1.Connect the power cord for your monitor to the power port on the back of the monitor. Plug the power cord for the monitor into a nearby outlet..

2.Connect the signal cable to the 15-pin, D-sub connector on the back of your monitor.

3.Connect the monitor to the Macintosh computer using the D-SUB connection cable.

4.In the case of an old model Macintosh, you need to connect the monitor using a special Mac adaptor.

5.Turn on your computer and monitor. If your monitor displays an image, installation is complete.

Image 14
