Setting up the TV

Put your TV on a pedestal stand and mount the TV on a table or wall.

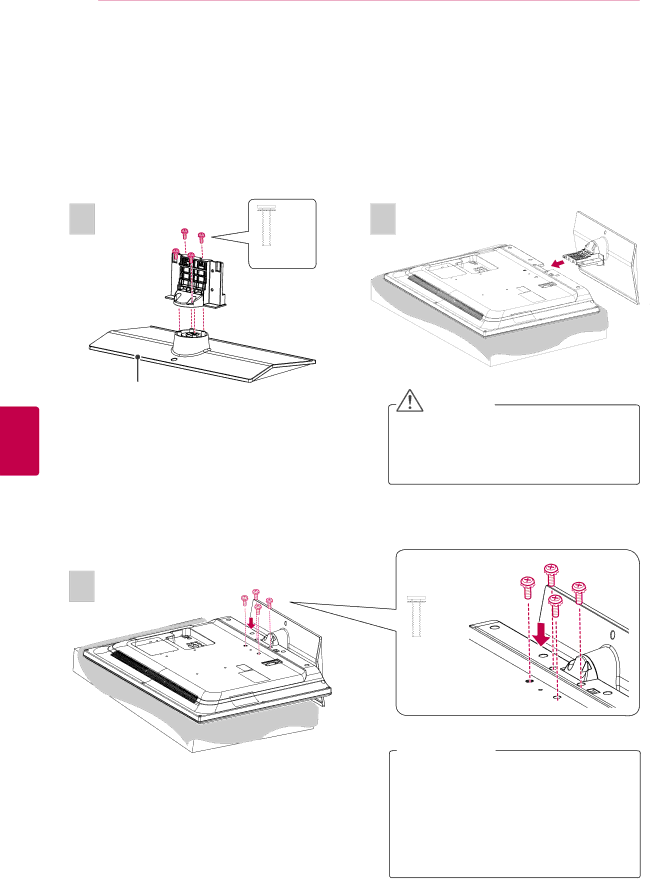

Attaching the stand

If you are not mounting the TV to a wall, use the following instructions to attach the stand.

(For 32/37/42LT560C, 32/37/42/47LT560E)

1	4 EA	2
	4 EA

ENGLISH

Stand Body

Stand Base

M4 x 14

Front

Caution

yyWhen attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

4 EA

M4 x 14

Caution

yyMake sure that the screws are fastened completely. (If they are not fastened securely enough, the TV may tilt forward after being installed.)

yyDo not fasten the screws with too much force; otherwise they may be worn out and get loosened.
