Aiwa XD-DV380U Connecting to a TV equipped with an S-video jack, Before connecting

Page 16

CONNECTIONS (CONTINUED)

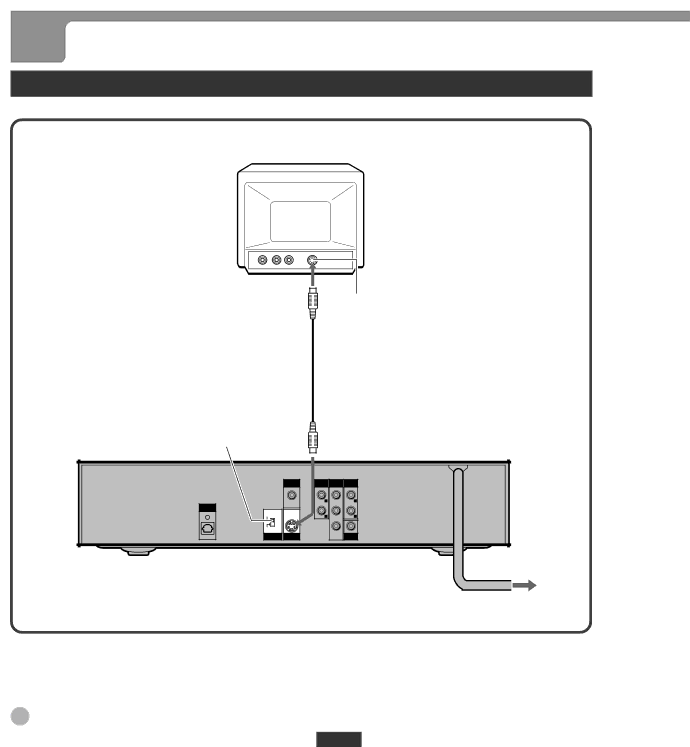

Connecting to a TV equipped with an S-video jack

Rear of the TV

S-video input connector (S1, S2)

S-video cord (not supplied)

Set the VIDEO OUT switch to S-VIDEO

to S-VIDEO OUT connector

Rear of the unit

DIGITAL

OUT

OPTICAL

DIGITAL

OUT

COAXIAL

S-VIDEO

COMPONENT

VIDEO S-VIDEO

OUT OUT

AUDIO COMPONENT AUDIO OUT 2 VIDEO OUT OUT 1

L

Pb

L

R

Pr

R



Y

VIDEO









OUT

Before connecting!

Set the VIDEO OUT switch to S-VIDEOwhen connecting to a TV with an S-video jack.

Tip

Video signals are always output from VIDEO OUT jack on the unit regardless of this setting.

Set the setup menu correctly after connecting!

Set the “TV Aspect” of the setup menu according to the audio equipment and TV connected to the unit as follows: (See “CHANGING SETUP VALUE” on page 38 for details.)

to an AC outlet

TV Aspect

When your TV is a conventional-screen size TV: 4:3 Letterbox

When your TV is a wide-screen size TV: 16:9 Wide

NOTES

For the best possible picture clarity, it is recommended that an S (separate) video cord (not supplied) be used when connecting the unit to a TV equipped with an S- video input terminal.

If picture noise appears while playing copy-protected DVDs, connect the unit directly to a TV. Do not connect through a VCR, TV/VCR, or AV selector.

16 ENGLISH

AIWA XD-DV380U 8B-AV3-905-01 (010209AMK-Y-L)
