Appendix

Attaching a wall or Arm mounting device

The TV/Monitor supports VESA mounting standard for use with various VESA mounting devices. To install any VESA mounting device, please follow the instructions given.

1

2

3

4

5

AB

Lay the LCD TV/Monitor face-down on a flat surface with a cushion or other soft materials to protect the screen.

Remove all cable connected on the TV/Monitor.

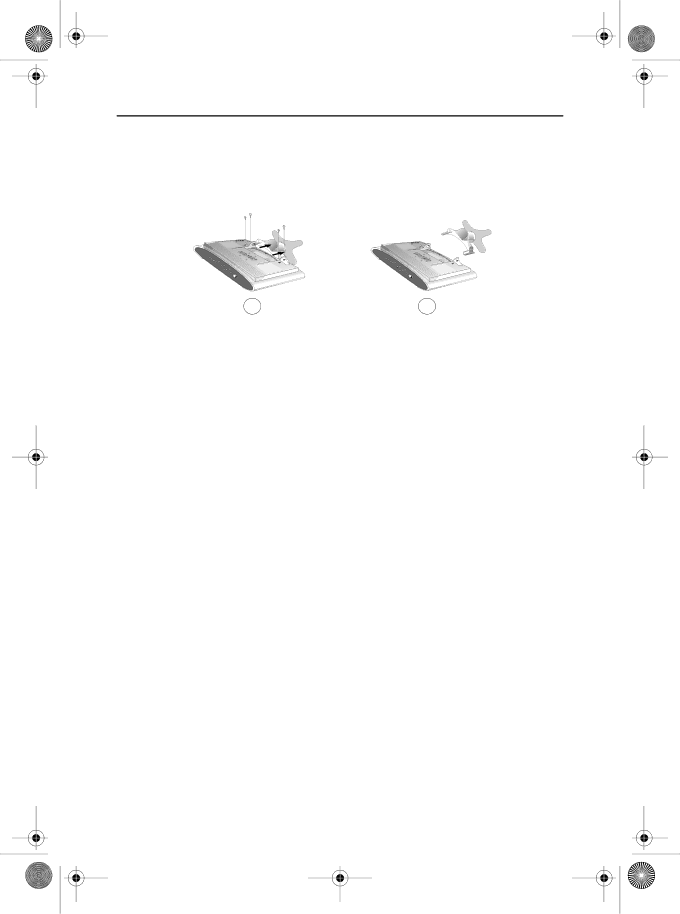

Remove the four screws and then remove the Stand from the LCD TV/Monitor. (refer to the picture A&B)

Connect all cable you removed at step 2.

Now you are ready to install Wall/Arm mounting device depending on your applications.

English 32
