Appendix I: Enable UPnP of Windows XP

Use the following steps to enable UPnP settings only if your operating system of PC is running Windows XP.

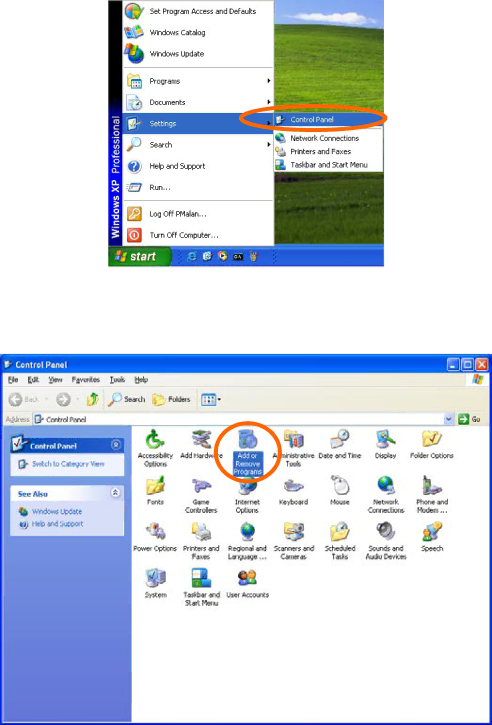

Go to Start > Settings.

Click Control Panel

Click Add or Remove Programs

83
