Installation

Your HD28 camera is weather-sealed for indoor or outdoor locations. The wiring can be completely concealed for maximum vandal and tamper resistance.

Mounting the Camera

The HD28 camera is designed to be surface mounted on a wall or ceiling.

Preparing the Mounting Surface

1.Affix the mounting template to the mounting surface (see Figure 1).

2.Pre-drill four holes as indicated on the template, using the recommended hole size for the screws being used.

3.Drill out the conduit hole, if required (see Installing the Conduit Plug).

4.Connect the wiring (see Connecting the Wiring).

5.Mount the camera base to the wall or ceiling using mounting screws (not supplied) capable of holding at least twice the weight of the camera.

Note Alternate fasteners (preferably stainless steel) can be used, provided they are not larger than the screw holes on the mounting template.

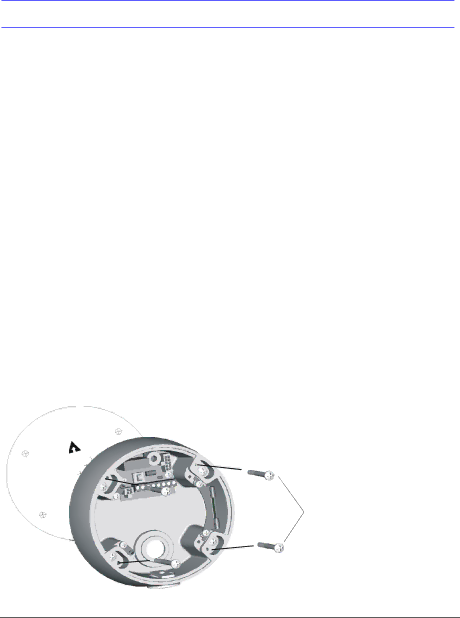

Figure 1 Mounting Template Guide















t















n















u















o







d





ll

M























e



a









d



W







en











m













m















o







ay



c











re





isw











th













Mounting screws appropriate to your installation (not supplied)

Rev 1.01

2

Document 900.0275





10/05
