Panasonic NV-GS400GN Standard Accessories, Optional Accessories, Controls and Components

Page 4

Before Use

Before Use

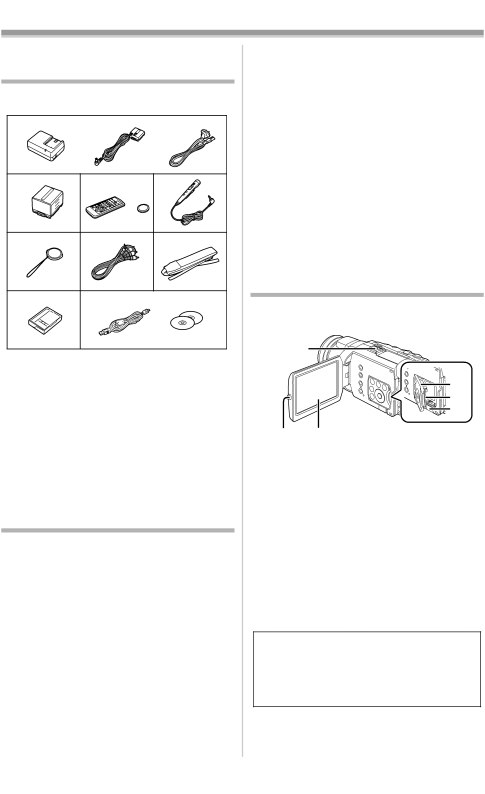

Standard Accessories

Illustrated are accessories supplied with the Movie Camera.

1)

2)

3)

4)

5)

6)

7)

8)9)

1)AC Adaptor, DC Input Lead and AC Mains Lead -8-

2)Battery Pack -8-

3)Remote Controller and Button-Type Battery -7-

4)Free Style Remote Controller with Mic -7-

5)Lens Cap -10-

6)AV Cable -43-

7)Shoulder Strap -10-

8)Digital Video Head Cleaner -63-

9)USB Connection Kit (USB Cable and CD-ROM)

Optional Accessories

1)AC Adaptor (VW-AD11GN)

2)Battery Pack (Lithium/CGA-DU14/1360mAh)

3)Battery Pack (Lithium/CGA-DU21/2040mAh)

4)Wide Conversion Lens (VW-LW4307ME)

5)Tele Conversion Lens (VW-LT4314NE)

6)Filter Kit (VW-LF43WE)

7)Stereo Microphone (VW-VMS2E)

8)Video DC Light (VW-LDC10E)

9)Video DC Light (VW-LDH3E)

10)Light Bulb for Video DC Light (VZ-LL10E)

11)Light Bulb for Video DC Light (VW-LL3E)

12)Stereo Zoom Microphone (VW-VMH3E)

13)Shoe Adaptor (VW-SK11E)

14)Video Flash (VW-FLH3E)

15)Tripod (VW-CT45E)

16)Snow & Rain Jacket (VW-SJGS400E)

17)DV Cable (VW-CD1E)

18)DV Editing Software with DV Interface Board (VW-DTM41E)

19)SD Memory Card Application Software (VW-SWA1E)

≥“TitleStudio” software for title creation, and “SD-Jukebox” software for recording music are included. (However, this Movie Camera cannot play back music.)

20)SD Memory Card (RP-SD032/ RP-SD064/RP-SD128/RP-SDH256/ RP-SDH512/RP-SDH01G)

21)PC Card Adaptor for SD Memory Card (BN-SDABPE)

22)USB Reader Writer for SD Memory Card

(BN-SDCAPE)

≥Some optional accessories may not be available in some countries.

Controls and Components

ªMovie Camera

(1)

(4)

(5)

(6)

(2)(3)

(1)Smart Accessory Shoe

≥The Video DC Light (VW-LDH3E; optional), Video Flash (VW-FLH3E; optional) or the Stereo Zoom Microphone (VW-VMH3E; optional), etc. can be attached here. Power is supplied directly from the Movie Camera when using an accessory supported by the Smart Accessory Shoe.

≥Do not touch the connector part of the Smart Accessory Shoe.

(2)LCD Monitor Open Button [PUSH OPEN]

-12-

(3)LCD Monitor -12-, -65-

Due to limitations in LCD production technology, there may be some tiny bright or dark spots on the LCD Monitor screen. However, this is not a malfunction and does not affect the recorded picture.

(4)Card Slot Cover -11-

(5)Card Slot -11-

(6)Card Slot Cover Open Lever [OPEN] -11-

4
