Panasonic NV-GS400GN Using the DV Cable for Recording, Digital Dubbing, Recorder, To Stop Dubbing

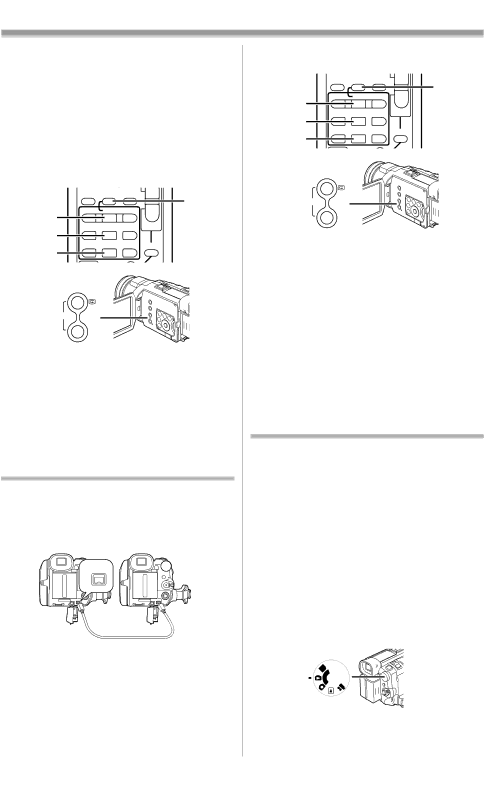

Page 47

Editing Mode

2Insert an unrecorded Cassette. Other Equipment:

3Insert a recorded Cassette and start playback.

Movie Camera:

4While pressing the [¥REC] Button (66), press the [1] Button (84) on the Remote

Controller.

Or while pressing the [REC] Button (9), press the [BACK LIGHT] Button (10) on the

Movie Camera.

	MULTI/				T
	MULTI/	¥REC	A.DUB
	P-IN-P	¥REC	A.DUB	r	(66)
				sVOL	(66)
				sVOL
(84)	V/REW	PLAY	FF/W		W
(84)	6	1	5		W
(81)	STILL ADV	PAUSE	STILL ADV
(81)	E	;	D
(82)	INDEX	STOP	INDEX		P.B. ZOOM
(82)	K	∫	L

(9)

REC

(10)BACK LIGHT

≥When recording on a card, press the [PHOTO SHOT] Button.

5Press the [;] Button (81) or [∫] Button (82) to stop recording.

Other Equipment:

6Press the Stop Button to stop playback.

≥For other notes concerning this item, see -61-.

Using the DV Cable for Recording

(Digital Dubbing)

By connecting this Movie Camera to other digital video equipment that has a DV Input/Output Terminal with a DV Cable VW-CD1E (optional) 1, dubbing can be done in the digital format.

DV

1

Player/Recorder:

1Insert the Cassette and set to Tape Playback Mode.

Player:

2Press the [1] Button (84) to start playback.

	MULTI/				T
	MULTI/	¥REC	A.DUB
	P-IN-P	¥REC	A.DUB	r	(66)
				sVOL	(66)
				sVOL
(84)	V/REW	PLAY	FF/W		W
(84)	6	1	5		W
(81)	STILL ADV	PAUSE	STILL ADV
(81)	E	;	D
(82)	INDEX	STOP	INDEX		P.B. ZOOM
(82)	K	∫	L

(9)

REC

(10)BACK LIGHT

Recorder:

3While pressing the [¥REC] Button (66), press the [1] Button (84) on the Remote

Controller.

Or while pressing the [REC] Button (9), press the [BACK LIGHT] Button (10) on the

Movie Camera.

≥Recording starts.

To Stop Dubbing

Press the [;] Button (81) or the [∫] Button (82).

≥For other notes concerning this item, see -61-.

Printing pictures with directly connecting to the printer (PictBridge)

After connecting the Movie Camera and the printer compatible with PictBridge, start the following procedures.

≥To print pictures with directly connecting the Movie Camera to the printer, prepare the printer compatible with PictBridge. (Also read the operating instructions of the printer.)

≥You cannot print images which cannot be played on the Movie Camera.

≥Check the settings about the paper size, quality of print, etc. on the printer.

≥We recommend using the AC Adapter as the power source.

1Set the Mode Dial (44) to Picture Playback

Mode.

		P
		C
	(44)	D
	(44)	S
		S

47
