AXIS 212 PTZ/ AXIS 212 PTZ-V Installationsanleitung

Seite 29

Hardware installieren

In der Abbildung auf Seite 28 finden Sie einen detaillierten Überblick über die AXIS 212 PTZ/AXIS 212 PTZ-V. Notieren Sie sich die Seriennummer (S/N) der Kamera. Diese befindet sich auf dem Produktaufkleber an der Gehäuseunterseite. Die Seriennummer wird für die Installation benötigt. Die AXIS 212 PTZ/AXIS 212 PTZ-V ist nur für die Verwendung in Innenräumen ausgelegt.

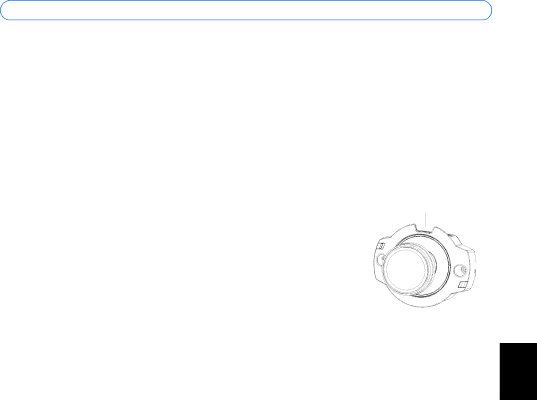

Wandmontage.

anschluss





Netzwerk -

1.



oben

Bohren Sie mit Hilfe der Bohrschablone zwei Löcher in die



Wand.



2.

Befestigen Sie die Kameraeinheit an der Wand. Verwenden Sie



dazu Schrauben und Dübel, die für den Baustoff der Wand



geeignet sind. Die Kamera muss mit dem Netzwerkanschluss



nach oben montiert werden.



3.

Fahren Sie mit Kabel anschließen,

fort.

Winkelhalterung

1.Nutzen Sie die Winkelhalterung, um die Kamera in einem bestimmten Winkel an der Wand zu montieren.

2.Schneiden Sie ggf. den Kunststoff ein, um die Kabel zur Kamera zu verlegen.

3.Befestigen Sie die Winkelhalterung mit geeigneten Schrauben und Dübeln an der Wand.

4.Verwenden Sie die mitgelieferten Schrauben (12 mm), um die Kamera an der Winkelhalterung zu befestigen. Die Kamera muss mit dem Netzwerkanschluss nach oben montiert werden.

5.Fahren Sie mit Kabel anschließen, fort.

Hinweise:

Netzwerk- und Stromkabel der AXIS 212 PTZ/AXIS 212 PTZ-V können durch die Wand oder durch die seitlichen Öffnungen verlegt werden. Für die Öffnungen an der Kuppelhaube sind Abdeckplatten vorhanden.

Die Kamera muss mit dem Netzwerkanschluss nach oben montiert werden.

Die Kamera muss so platziert sein, dass die manipulationssicheren Schrauben mit dem mitgelieferten Schraubendreher festgezogen werden können.

DEUTSCH
