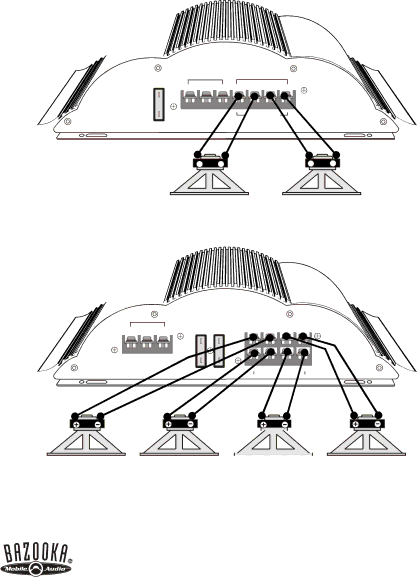

SPEAKER CONNECTIONS
Make the speaker connections using speaker wire that is at least 16 gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential for strong bass response. When connecting, make sure that positive (+) from the amplifier is connected to the positive (+) of the speaker, and the same for negative
FUSE
POWER
+12V REM GND
SPEAKER
L+
L -
R +
R -
BRIDGED -
+-
4 Ohm Speakers
(2 Ohm Minimum)
+-
CSA50.2 SPEAKER CONNECTIONS
POWER
GND REM +12V
FUSE
SPEAKER | |
+ CH1 - | + CH2 - |
|
| CH3 - | + CH4 |
| |||||
|
|
|
| + | - |
|
| ||
|
|
|
|
|
| ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 Ohm Speakers | 4 Ohm Speakers |
(2 Ohm Minimum) | (2 Ohm Minimum) |
CSA50.4 SPEAKER CONNECTIONS
9
