Keys Fitness 4500T owner manual Assembly requires the included allen wrench

Page 6

Assembly

Assembly requires the included allen wrench.

Do not plug in the power cord until all assembly steps are completed.

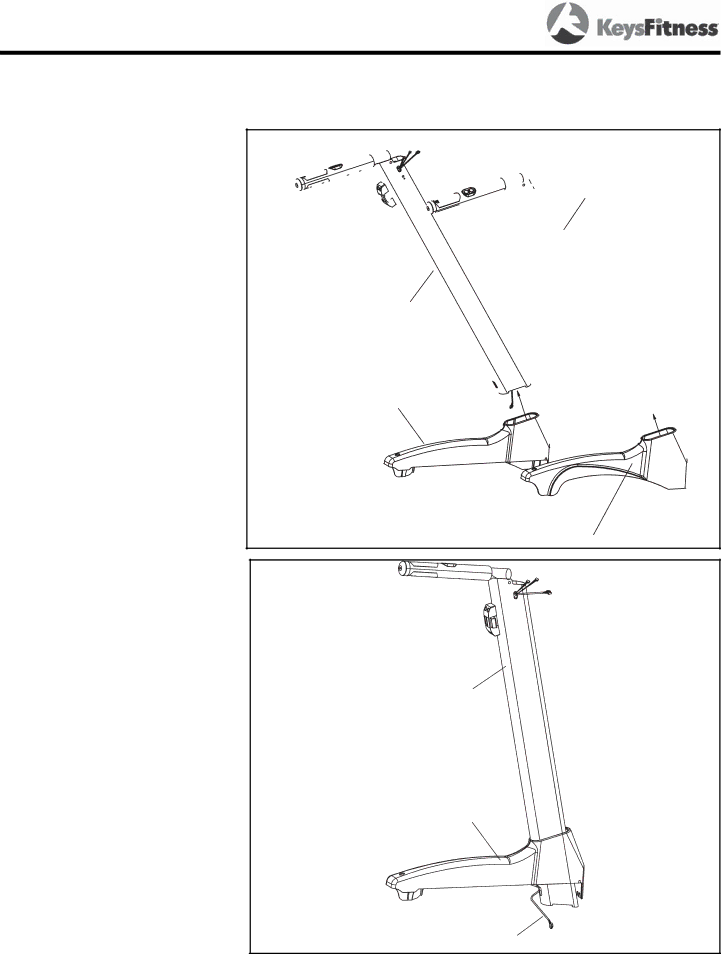

Figure 1

Step 1

Place the left and right uprights tube through the holes in the left and right fenders.

Figure 2

Step 1

Slide the fenders up the upright assembly and pull the console har- ness through the hole in bottom of the left upright tube.

Figure 1

Right Upright

Left Upright

Left Fender

Right Fender

Figure 2

Left Upright

Left Fender

Console Harness

6
