INTRODUCTION IMPORTANT PRECAUTIONS
ASSEMBLY
BEFORE YOU BEGIN
PRE - ASSEMBLY
DO NOT ATTEMPT TO LIFT THE TREADMILL!* Do not move or lift treadmill
WARNING from packaging until specified to do so in the assembly instructions. Failure to do so may result in injury! Remove plastic wrap from console masts.
Note: During each assembly step, ensure that ALL nuts and bolts are in place and partially threaded in before
completely tightening any ONE bolt. NOTE: A light application of grease may aid in the installation of hardware. Any grease, such as lithium bike grease is recommended.

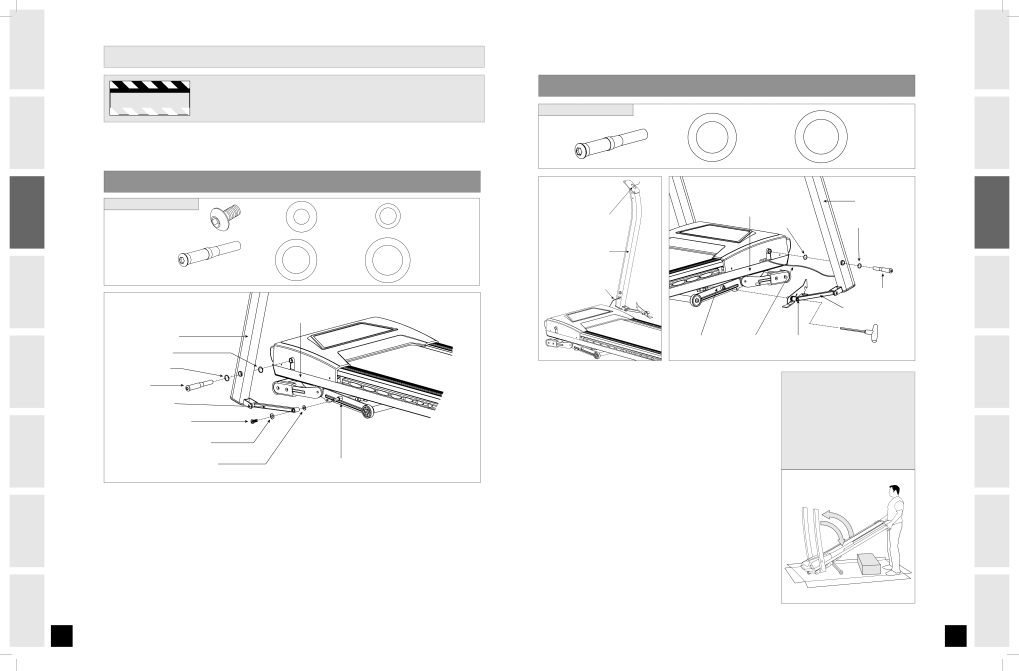

A S S E M B LY STEP 1
HARDWARE BAG 1 CONTENTS : | BOLT (A) | FLAT WASHER (B) | TEFLON WASHER (C) |
| |||
| 15 mm | 20 mm | 18 mm |
| Qty: 1 | Qty: 1 | Qty: 1 |
| BOLT (D) | FLAT WASHER (E) | WAVY WASHER (F) |
| Qty: 1 | 27 mm | 29 mm |
|
| Qty: 1 | Qty: 1 |
MAIN FRAME |
LEFT CONSOLE MAST |
WAVY WASHER (F) |
FLAT WASHER (E) |
A S S E M B LY STEP 2
HARDWARE BAG 2 CONTENTS :
| FLAT WASHER (E) | WAVY WASHER (F) | |
BOLT (D) | 27 mm | 29 mm | |
Qty: 1 | Qty: 1 | ||
Qty: 1 | |||
|
|
|
|
| RIGHT CONSOLE MAST | |
LEAD WIRE | MAIN FRAME |
|
| |
WAVY WASHER (F) | FLAT WASHER (E) | |||
| ||||
RIGHT CONSOLE MAST |
|
|
| |
CONSOLE CABLE |
|
| BOLT (D) | |
|
|
| ||
|
|
| RIGHT LINKAGE ARM | |
ELEVATION FRAME | CONSOLE CABLE |
| ||
IMPORTANT PRECAUTIONS INTRODUCTION
ASSEMBLY
BEFORE YOU BEGIN
TREADMILL OPERATION
CONDITIONING TROUBLESHOOTING GUIDELINES & MAINTENANCE
BOLT (D) |
|
LEFT LINKAGE ARM |
|
BOLT (A) |
|
FLAT WASHER (B) |
|
TEFLON WASHER (C) | ELEVATION FRAME |
A | Open HARDWARE BAG 1. |
B | Cut banding straps. Do not move or lift treadmill from packaging. |
C | Move left linkage arm into position. Insert 1 bolt (A) and 1 FLAT WASHER (B) into left |
| linkage arm followed by 1 teflon washer (C) and attach to elevation frame. |
D | Lift left console mast into upright position. Be sure to hold the console mast firmly, as |
| it will not stay in the upright position on its own. |
E | Insert 1 bolt (D) and 1 FLAT washer (E) through left console mast followed by |
APull LEAD WIRE through RIGHT CONSOLE MAST. After pulling the lead wire through the mast, the top of the console cable should be located at the top of the mast. Detach and discard lead wire.
BOpen HARDWARE BAG 2.
CMove right linkage arm into position and attach to
ELEVATION FRAME.
Note: While holding RIGHT CONSOLE MAST in the upright position, tighten
DInsert 1 bolt (D) and 1 FLAT washer (E) through RIGHT console mast followed by 1 WAVY washer (F) and attach to MAIN FRAME.
ELift the running deck until lock latch on side of treadmill is fully engaged.
FRemove console from box and place out of the way.
*Note: If you have attempted to move the treadmill from the box and the machine has sprung open and cannot be assembled, refer to the troubleshooting section in order to restore the treadmill to its proper position.
1 |
3 |
2 |
TREADMILL OPERATION
TROUBLESHOOTING CONDITIONING & MAINTENANCE GUIDELINES
LIMITED WARRANTY
1 WAVY washer (F) and attach to MAIN FRAME. |
GLower the treadmill running deck from the folded position by stepping on LOCK LATCH on lower right side.
