Product dimensions

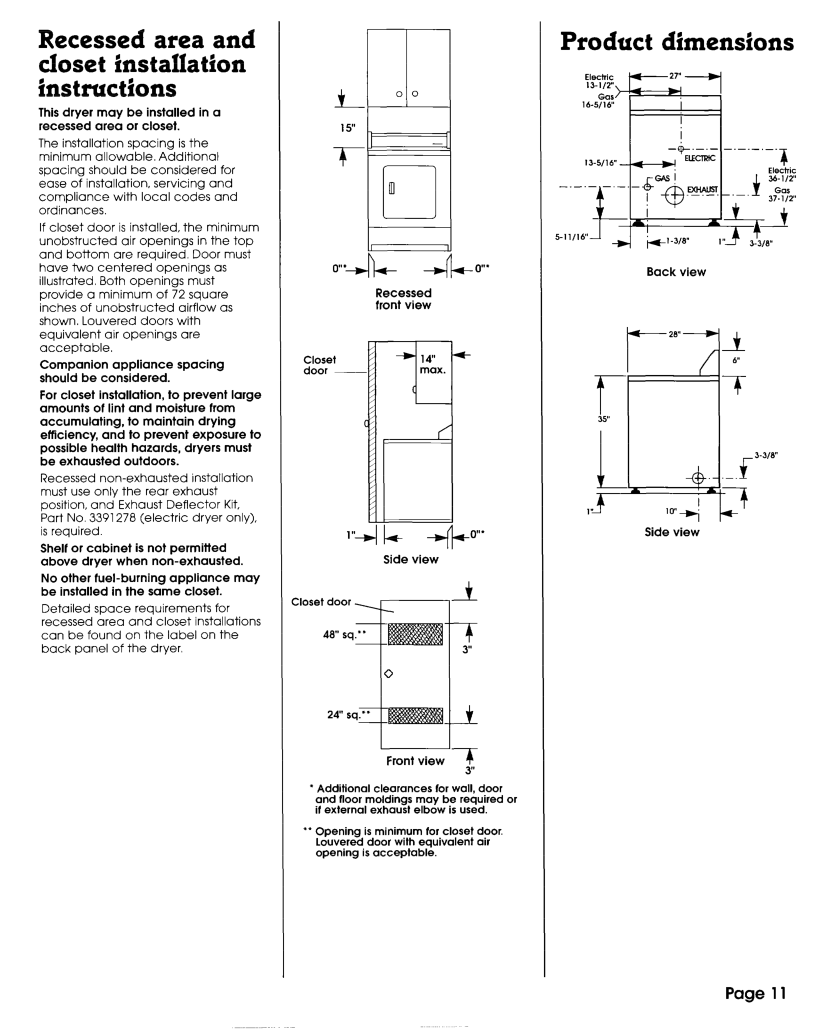

Recessed area and closet installation instructjrons

This dryer may be installed in a recessed area or closet.

The installation spacing is the minimum allowable. Additional spacing should be considered for ease of installation, servicing and

compliance with local codes and ordinances.

If closet door is installed, the minimum

unobstructed air openings in the top and bottom are required. Door must have two centered openings as illustrated. Both openings must provide a minimum of 72 square

inches of unobstructed airflow as shown. Louvered doors with equivalent air openings are acceptable.

Companion appliance spacing should be considered.

For closet installation, to prevent large amounts of lint and moisture from

accumulating, to maintain drying efficiency, and to prevent exposure to possible health hazards, dryers must be exhausted outdoors.

Recessed non-exhausted installation must use only the rear exhaust position, and Exhaust Deflector Kit, Part No. 3391278 (electric dryer only), is required.

Shelf or cabinet is not permitted above dryer when non-exhausted.

No other fuel-burning appliance may be installed in the same closet.

Detailed space requirements for recessed area and closet installations can be found on the label on the back panel of the dryer.

Back view

Recessed front view

28” -

35"

1"b ICI"+/

Side view

Front view 4

J”

l Additional clearances for wall, door and floor moldings may be required or if external exhaust elbow is used.

l * Opening is minimum for closet door.

louvered door with equivalent air opening is acceptable.

6”

. 3.318"

-.f

Page 11
