Front Load Dryer Specifications

•Product Shipping Weight (approx.) – 140 Lbs.

•An electrical supply with grounded three-prong receptacle is required.

•Voltage Rating – 240V / 60 Hz / 30 Amps

•Single phase 3- or 4-wire cable, 240 Volt, 60 Hertz AC only electrical supply with ground required on separate circuit fused on both sides of line. (Do not use same circuit as washer.)

•Connected Load (kW Rating) @ 240 Volts = 5.0 kW

•Amps @ 240 Volts = 24 Amps

•Dryer MUST employ a 3-conductor NEMA 10-30 type SRDT or

4-conductor NEMA 14-30 type SRDT or ST (as required), rated at 240 volt AC minimum, 30 amp power supply cord marked for use with clothes dryers (not supplied).

•Grounding through neutral link prohibited in specific applications and certain locales, requiring use of 4-wire system. (For detailed electrical requirements, refer to Product Installation Guide on web.)

•Always consult local and national electric codes.

•Can be installed alone, with or without optional 15" Drawer Pedestal, or stacked above matching Frigidaire® Affinity Washer, which requires installation of optional Dryer Stacking Kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.)

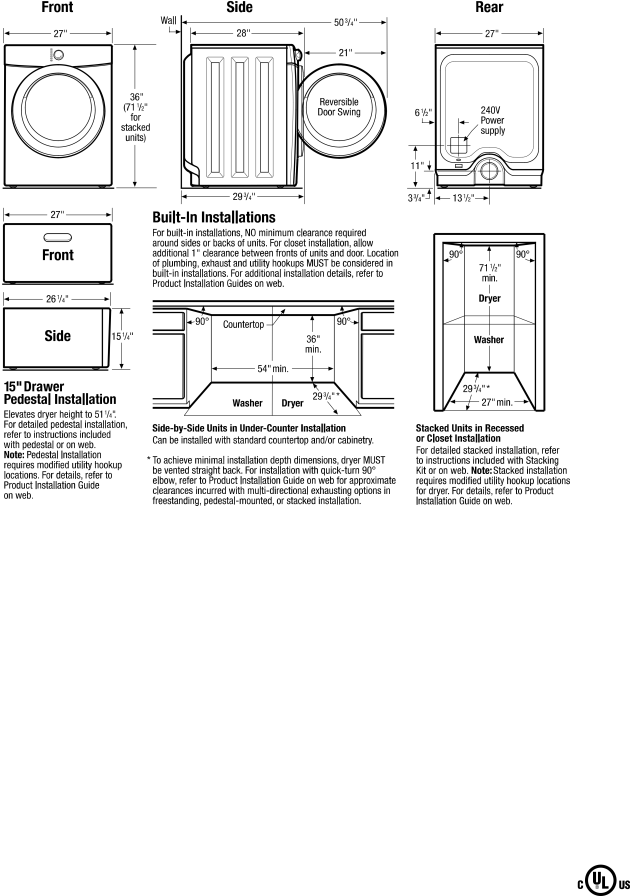

•Can be built in with matching Frigidaire® Affinity Washer in under- counter, recessed or closet installation. (Refer to Built-In Installations on this page for cutout dimensions. For additional installation details, refer to Product Installation Guide on web.)

•Closet installation requires vented door with 2 unobstructed louvered openings, minimum 60 sq. in. each, located 3" from top and bottom

Front Load Dryers

FAQE7017K W/B Electric

of door. Full-length 120 sq. in. opening also acceptable. Allow additional 1" clearance between fronts of units and closed door.

•Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored.

•Floor MUST be solid with 1" maximum slope. Do NOT install on carpeted surface.

•Dryer MUST exhaust to outside of building, NOT into any concealed space.

•Exhaust installation requires minimum 4"-diameter rigid or flexible metal duct with approved vent hood having swing-out damper(s). Do NOT use flexible plastic or metal foil duct and use shortest run possible.

•Leveling legs supplied to level dryer properly and reduce excessive noise and vibration.

Note: For planning purposes only. Refer to Product Installation Guide on the web at frigidaire.com for detailed instructions.

Optional Accessories

•Dryer Stacking Kit – (PN # 134700600).

•15" Classic White Drawer Pedestal – (PN # APWD15W).

•15" Classic Black Drawer Pedestal – (PN # APWD15E).

•Mobile Home Installation Kit – (PN # 137067200).

•Drying Rack – (PN # 137067300).

FRIGIDAIRE®

USA • 250 Bobby Jones Expressway • Martinez, GA 30907	• 1-800-FRIGIDAIRE • frigidaire.com	Specifications
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4	• 1-800-265-8352 • frigidaire.ca
		subject to change.

FAQE7017K 06/09

Printed in the U.S.A.
