OPERATION
DUMPING (MANUAL)
1.Release drum lock lever by pushing lever into vertical position (Figure 25).

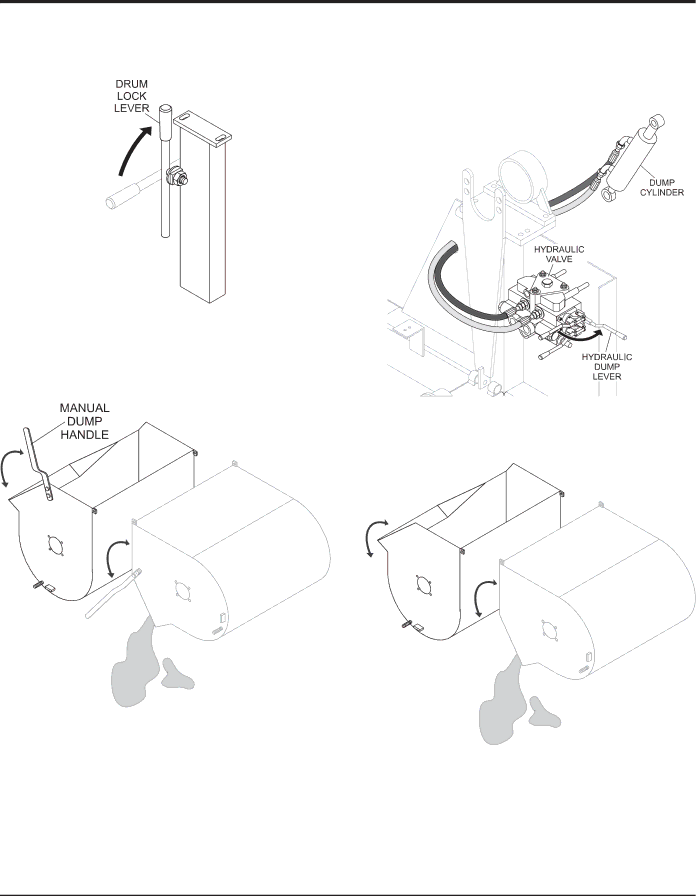

Figure 25. Drum Lock Lever
2.Pull dump handle downward to discharge (empty) the drum. Move dump handle upward to return it to vertical position. (Figure 26).
DUMPING (HYDRAULIC)
1.If operating a mixer with hydraulic dump capability, pull hydraulic dump lever (Figure 27) outward to place drum in dump position (Figure 28).
Figure 26. Manual Dump Handle
3.Drum lock lever automatically moves back to horizontal position, locking the drum back into vertical position.
4.Inspect for proper functionality before starting the engine or engaging blades. Any binding of material between the mixing blades and drum will cause the handle to quickly rotate if not in the “up and locked” position.
Figure 27. Hydraulic Dump Lever
Figure 28. Hydraulic Dump
2.Push hydraulic dump lever inward to place drum back in vertical position.
