USING DCN AUTOMATIC CAMERA CONTROL

Inserting seat (or unit) numbers and camera settings

When the seat (or unit) and camera settings are correct, the camera can be assigned to the seat (or unit). To do so:

• Click on the ‘Insert’ button.

The Seat number, camera number, preposition number (if applicable) and screen text is stored and displayed in the ‘Assignments:’ list. An example of the ‘Assignments:’ list is shown below.

3

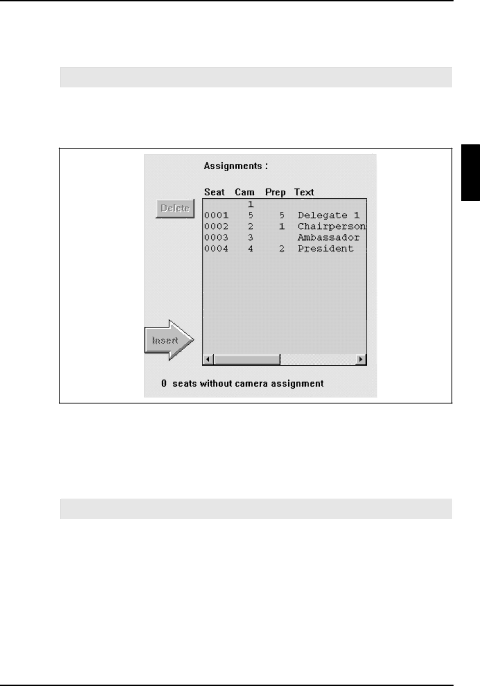

Fig. 12 Complete assignment list

Editing entries in the ‘Assignments:’ list

It is possible to recall entries in the ‘Assignments:’ list. This allows you to change their settings. To do so:

Double-click on the entry in the ‘Assignments:’ list to be edited.

The chosen entry and its settings will appear on the left-hand side of the ‘Camera Installation’ window.

Digital Congress Network

DCN Automatic Camera Control

Page 3-11

Software User Manual
