USING DCN AUTOMATIC CAMERA CONTROL

3.1 THE CAMERA INSTALLATION MAIN WINDOW

The Camera Installation main window is used to assign fixed cameras and camera positions (on preposition cameras) to DCN units.

There are two main types of camera recognized by the DCN Automatic Camera Control software. Fixed cameras are positioned before the confer- ence begins, and they remain in the same position during the conference.

3Dome cameras can adjust their position automatically in response to confer- ence activity. For example, a dome camera normally has several preposi- tions, determined during configuration, each covering a different delegate or group of delegates. The camera will automatically change position to cover the delegate who is speaking.

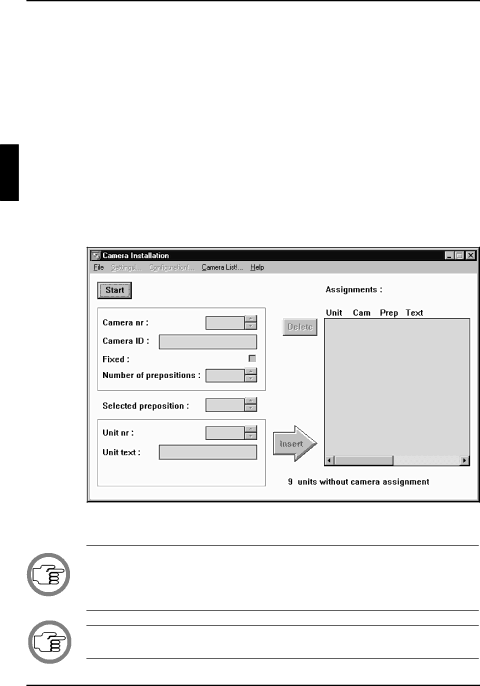

The Camera Installation window at startup is shown below.

Fig. 1 The Camera Installation window (at startup)

NOTE: The System Installation file is required for using DCN Automatic Camera Control with a software-controlled DCN system. This file is loaded from the Startup screen. In the example used in this manual, 10 DCN seats have been assigned in the System Installation file.

NOTE: In the stand-alone version of the software, ‘seats’ are referred to as ‘units’.

DCN Automatic Camera Control

Digital Congress Network

Software User Manual

Page 3-2
