Chauvet DVM-HR user manual Transmitter Card, Data Out 1 & Data Out 2 connectors, Aux Port

Setup

Transmitter Card

Install the transmitter card in an available PCI slot in your computer. The transmitter card is the interface between your PC, DV-Wall Studio software and the DV-Wall Screen. You must use the DVI cable provided to connect from the computers DVI output to the DVI port on the transmitter card.

		RJ-45	RJ-45
DVI Port	Aux port DC external	Data Out 2	Data Out 1
	power input

Data Out 1 & Data Out 2 connectors

The two network output ports transmit 256 rows or horizontal lines. Output 1 transmits rows/lines 1 through 256. Output 2 transmits rows/lines 257 through 512.

Aux Port

This is a standard 6-pin telephone connector. A cable is provided that connects from the 9-pin DIN RS232 port to the Aux port on the transmitter card. This port allows control of the R variable, gray scale, DV Wall matrix active area, and matrix lock and matrix range.

DC External Power Input

This input takes a 5V power supply. It is only used if the transmitter card will be operated eternally of the computer.

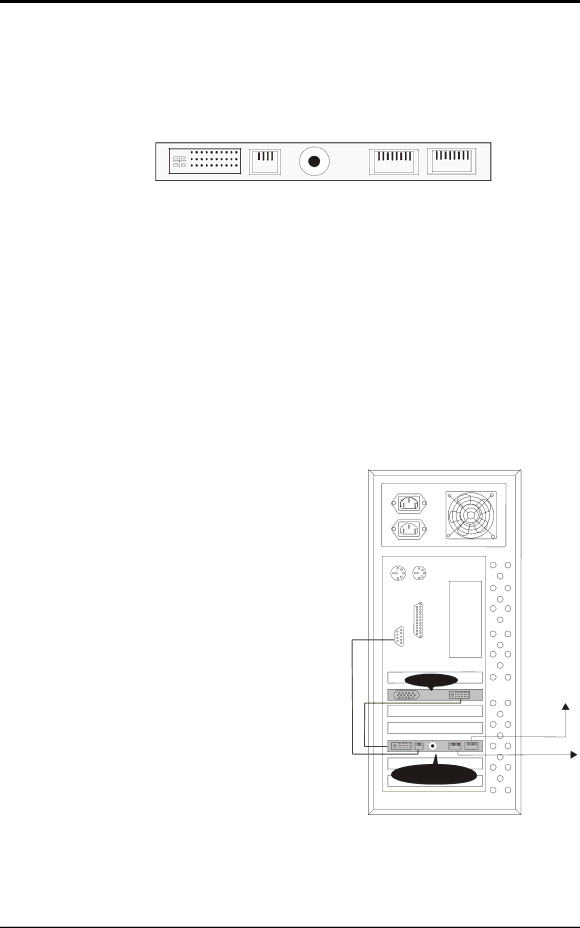

Transmitter Card Installation

1.	Turn off the computer before opening its case and
	adding or removing components.
2.	Insert the transmitter card into an available PCI
	slot in your computer.
3.	Connect out of your computer’s display card DVI
	output and into the DVI input on the transmitter
	card using the DVI signal cable provided.
4.	Connect out of the serial RS232 (also COM port)
	connector and into the 6-pin telephone connector
	on the transmitter card using the RS232 signal
	cable provided.	CABLE
5.	Plug the provided ethernet cable into the
	RJ45 connector labeled OUT 1 and into a	SIGNAL
	driver’s etherbet IN connector to display rows
	1 through 256.	RS232	SIGNALCABLE
6.	If using displaying 512 row lines connect the
	OUT 2 as well to a new driver.		DVI
7.	Secure all connections.
8.	In order to test the system successfully it will be
	necessary to address the drivers correctly. Jump

to the section in this manual on driver dipswitch settings.

COM

DISPLAY CARD

VGADVI

DVI	OUT 2
	RJ-45 RJ-45
	OUT1

TRANSMITTER

1~256ROW NETCABLE

257~512ROW

9. Once drivers are assigned, turn on the computer and test the system.

Note!

If your computer reboots or turns off abruptly; please remove the DVI cable from the transmitter card and reboot your computer. After Windows loads reconnect the DVI cable.

DV Wall System User Manual 15 2007-02-05/16:45
