Note: When drilling a hole larger than 1-1/4” diameter, always use a drill bit with 4 cutting edges.

Adjusting the Auxiliary Handle

The Auxiliary Handle (107) can be placed into a variety of different positions.

To rotate the Auxiliary Handle (107), turn the Auxiliary Handle (107) counterclockwise to loosen the band and Foursquare Bolt (111). Once loosened, turn the Auxiliary Handle to the position desired. Turn the Handle clockwise to tighten into place.

Using the Depth Gauge

The Depth Gauge (106) can only be used if the Auxiliary Handle (107) is positioned on either side or the top of the Rotary Hammer. The body of the Hammer will interfere with the Depth Gauge if the handle is in the bottom position.

1.Loosen the Auxiliary Handle (107) by twisting the Handle counterclockwise.

2.Once the Auxiliary Handle (107) is sufficiently loose, pull back on the Handle Holder (108) until the hole in the Handle Holder (108) is fully open.

Main Handle-Right Side Position

Switching Knob

Main Handle-Left Side Position

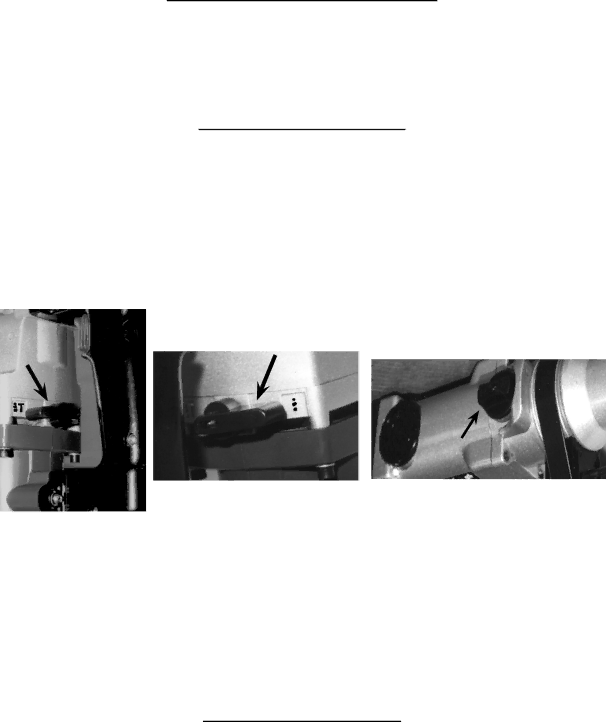

Figure 2 - Changing Settings









3.Slide the Depth Gauge (106) in to the desired length.

The tip of the Depth Gauge on the front of the Hammer should be the desired depth of the hole to be drilled. The depth is from the tip of the bit to the tip of the Depth Gauge. For example for a 2” hole, measure 2” back from the tip of the bit. Position the front tip of the Depth Gauge at that spot (See Figure 1).

4.After the Depth Gauge (106) is positioned in the desired position, slide the Handle Holder (108) up and twist the Auxiliary Handle clockwise until tight. The Depth Gauge should be

securely in position, and should not move.

Changing the Settings

•Your Rotary Hammer has both a Switching Knob (22) and a Main Handle (91) which must be adjusted before drilling, hammer drilling, or chiselling - see Figure 2.

SKU 41983

For technical questions, please call 1-800-444-3353.
