HP 3115m B2C43UT 11.6 B2C43UT#ABA manual

Page 50

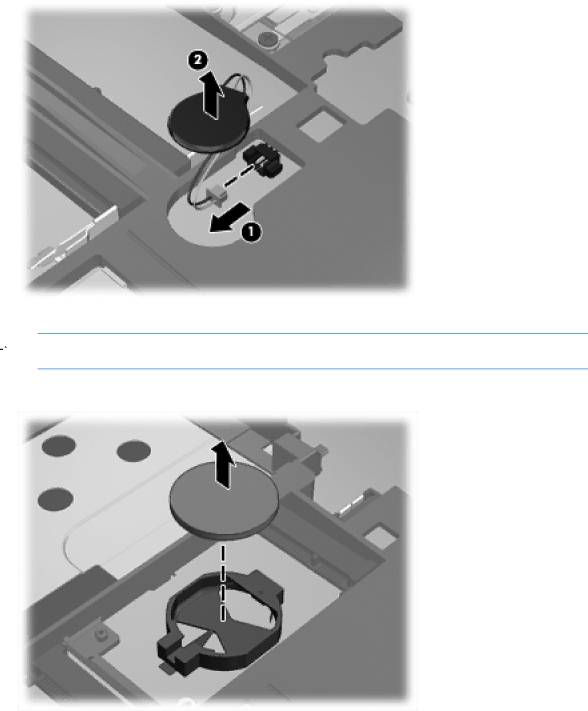

2.Remove the RTC battery (2). (The RTC battery is attached to the system board with double- sided tape.)

Reverse this procedure to install the RTC battery on a computer model with WWAN capability.

NOTE: Step 3 applies to computer models without WLAN capability. See steps 1 and 2 for RTC battery removal information on computer models with WWAN capability.

3.Use a thin, non-conductive tool to remove the RTC battery from the socket on the system board.

Reverse this procedure to install the RTC battery on computer models with WLAN capability. When installing the RTC battery, make sure the “+” sign faces up.

42	Chapter 4 Removal and replacement procedures
