Front Panel Controls

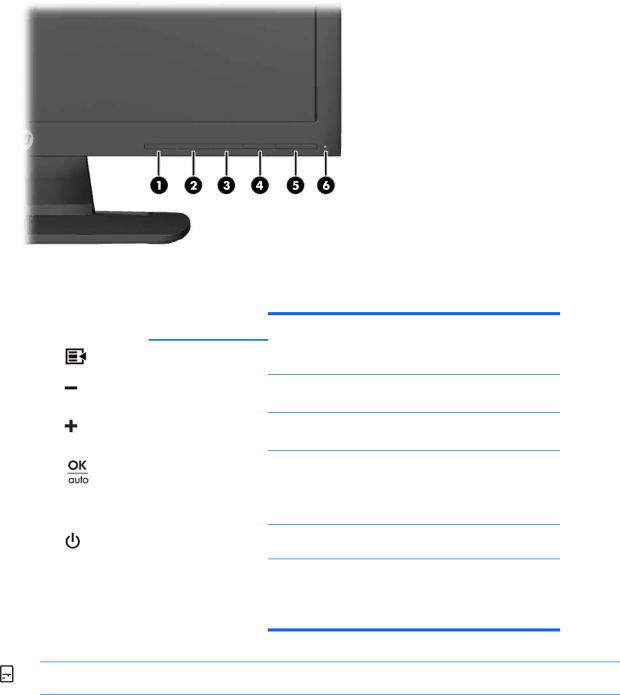

Figure 2-3Monitor Front Panel Controls

Table 2-1Monitor Front Panel Controls

Control

1

2

3

4

5

6



Function

Menu

Opens, selects or exits the OSD menu.

Minus

If the OSD menu is on, press to navigate backward through



the OSD menu and decrease adjustment levels.

Plus

If the OSD menu is on, press to navigate forward through



the OSD menu and increase adjustment levels.

OK/auto

If the OSD menu is on, press to select the highlighted



menu item.



If the OSD menu is inactive, press to activate the auto



adjustment feature to optimize the screen image.

Power

Turns the monitor on or off.

Power LED

Blue = Fully powered.



Amber = Sleep mode.



Flashing Amber = Sleep Timer mode.

NOTE: To view an OSD menu simulator, visit the HP Customer Self Repair Services Media Library at http://www.hp.com/go/sml.
