Installing the hood between cupboards with hanging rails
•Remove the grease filters. Fig. 6.
•Take off the visor G. Fig. 13.

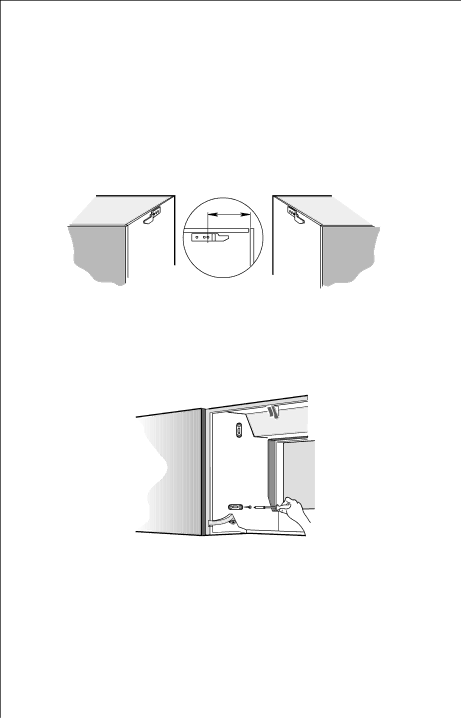

•Mount the two hanging rails directly underneath the edge of the cupboard using three screws 4,5 x 16 mm in each rail. Distance from first hole to front edge of the cupboards sides must be 153 mm. Fig. 8.
153
Fig. 8
•Push the extractor hood over the two hanging rails, then fix the hood from its inside to the cupboards sides with two screws (4,5 x 13) through the lower holes of the hood. Fig. 9.
Fig. 9
•Refit the visor. Fig. 13.
•Refit the grease filters.
•Fit the spacer M on the hood with two screws O and washers, ensure that there is not a gap between the back of the hood and the wall by adjusting the spacer M tightly to the wall, using the screws O. Fig. 11.
