Fisher & Paykel RX594, RX693, RX616 Installation precautions/warnings, Connecting the water supply

Page 11
Step 5

Installation instructions

9

4Using the carpenter’s level, make sure front of refrigerator is 6 mm or ½ bubble higher than back of refrigerator and that the refrigerator is level from side to side.

5If required, correct rocking of refrigerator by turning rear adjustment screw clockwise to raise

rocking corner.

If doors are uneven, do the following:

Determine which door needs to be raised.





Turn front roller adjustment screw ( a ) clockwise to raise





front corner of door.





If one refrigerator door has reached the limit of its





adjustment range and doors are still not level, raise or





lower the opposite door by turning roller adjustment





screw clockwise or counterclockwise.





Check with level to verify 6 mm tilt to the back for proper door closure.





a

If refrigerator is aligned and stable, replace toe grille and hinge covers.





Align the toe grille mounting clips with the lower cabinet slots.





Push the toe grille firmly until it snaps into place.





Connecting the water supply

Important!

It is recommended that an authorised plumber in your state or town is used to install the water connection, to ensure all local codes and ordinances are followed.

The new tubings supplied with the refrigerator are to be used, old tubings from old Ice and Water connections should not be used.

Installation precautions/warnings

DO NOT use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system.

WARNING – Connect to potable water supply only.

CONFIRM inlet water pressure to refrigeration connection is between 35 psi and 100 psi. This applies to reverse osmosis systems. If the pressure from your reverse osmosis system is lower than this, consult a licensed, qualified plumber.

DO NOT use on hot water supply, 38˚C max.

DO NOT install in a location that is susceptible to freezing temperatures as damage to the water supply, refrigerator or house itself could occur.

AVOID contamination of pipes during installation.

DO NOT use a self piercing or 4.7 mm saddle valve. Both reduce the water flow, can become clogged over time, and may cause leaks if repair is attempted.

DO NOT service ice maker unless specifically recommended in User Guide or published user‑repair instructions.

CHECK the copper tubing under the sleeve is smooth and free from defects. Do not reuse an old sleeve.

WAIT two to three hours before placing refrigerator in final position to check and correct any water leaks. Recheck for leaks after 24 hours. Water damage to an improper water connection may cause mould/ mildew growth. Clean up spills or leakage immediately.

Page 10 Page 12

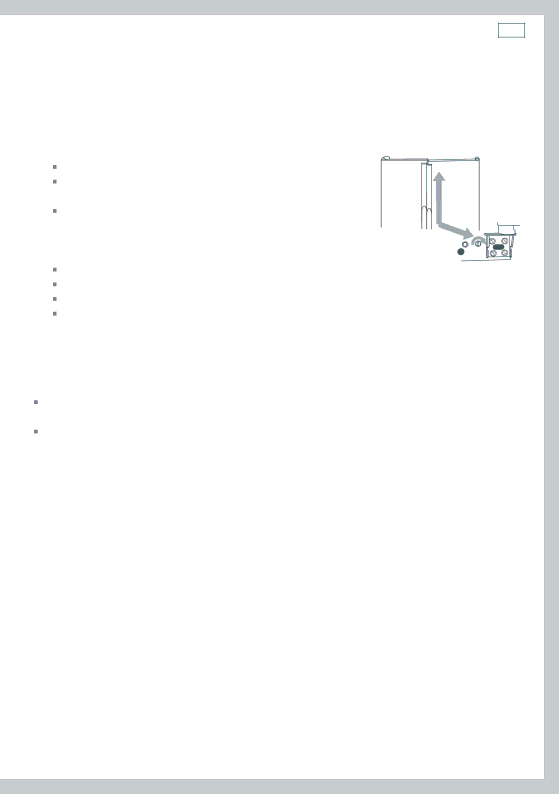

Image 11
