INSTALLATION

Check the appliance is electrically safe when you have finished.

















Electrical Connection

����

� �

� �

This appliance must be installed by a qualified electrician

�

to comply with the relevant Institute of Electrical







� �









��





�



Engineers (I.E.E.) regulations and also the local electricity

















supply company requirements.

�



�

�



�

�

�

�















�





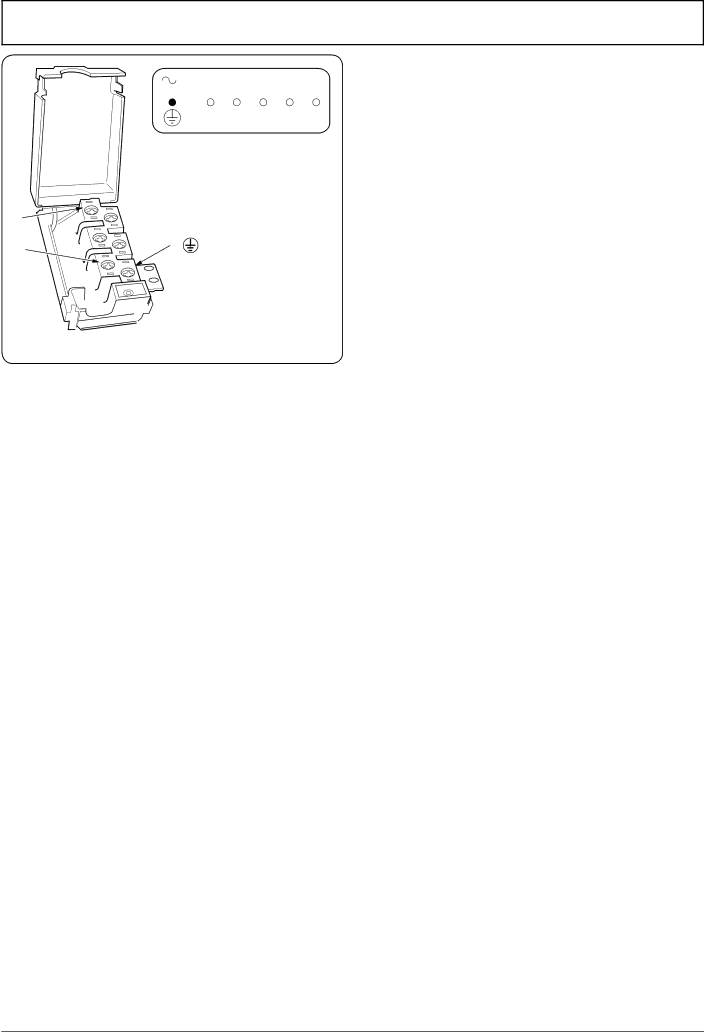

ArtNo.130-0007 - BI oven





electrical connections





Fig.7-2

WARNING: THIS APPLIANCE MUST BE EARTHED

Note: The appliance must be connected to the correct electrical supply as stated on the voltage label on the appliance, through a suitable cooker control unit incorporating a double pole switch having a contact separation of at least 3mm in all poles. This appliance must not be connected to an ordinary domestic power point.

The mains terminal is situated on the back of the oven (Fig.7-2).

Connect the cable to the correct terminals. Check that the links are correctly fitted and that the terminal screws are tight. Secure the mains cable using the cable clamp.

Ensure the cable route avoids the risk of trapping or touching hot surfaces.

Current Operated Earth Leakage Breakers

Where the installation is protected by a 30mA sensitivity residual current device (RCD), the combined use of your appliance and other domestic appliances may occasionally cause nuisance tripping. In these instances the kitchen circuit may need to be reconfigured. This work should be carried out by a qualified electrician.

Levelling

The worktop should already be fitted and levelled, and the cabinets mounted 90° to the worktop. It is only necessary to ensure the top front edge of the appliance unit supports the front edge of the worktop and line up the appliance trims with the doors.

Customer Care

Please complete your contact details in the front of this section. Please inform the user how to operate the appliance and hand over the instruction pack.

Thank you.
