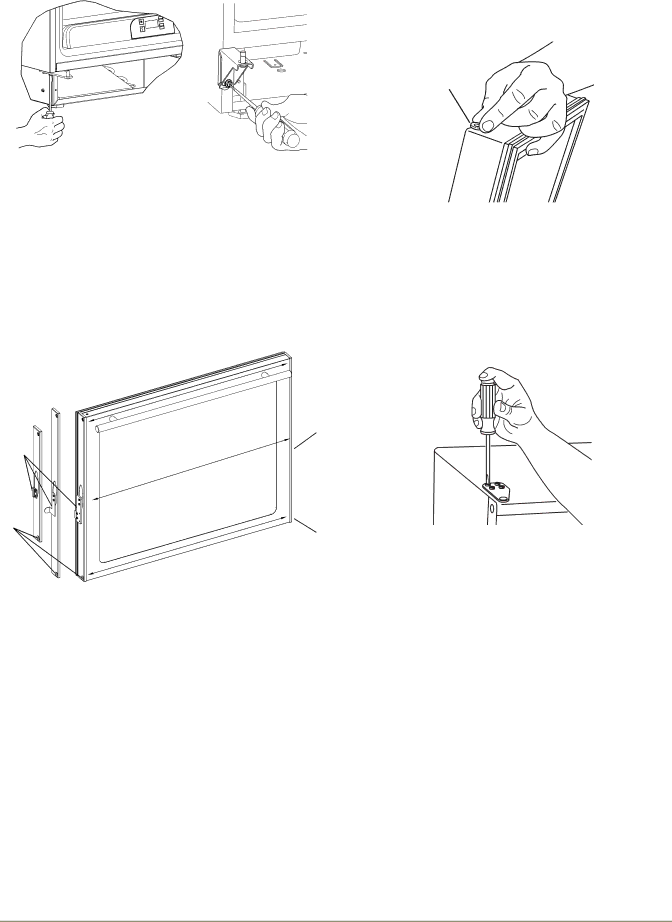

Install bottom hinge:
1.If you have a plate hinge, reorient the pivot screw so it protrudes the opposite direction form the hinge. Remove the pivot screw from the hinge. Turn the plate over and reinstall the screw.
2.Align hinge outer edge with cabinet. For models with a plate hinge, the flat edge of the hinge alignes with the outer edge of the cabinet.
Install two or three screws, depending on model. Replace nuts if used.
7.Install screws into holes on opposite side, where the hinge was removed. Replace nuts if used.
1
Prepare door for reinstallation:
For black or white doors:
1.Remove plastic hole plug from top of door handle and reinstall on opposite side.
2.Remove plastic hinge bushing on bottom of door and reinstall on opposite side. Clean out bushing hole in door bottom with a screwdriver if necessary.
3
4
2
1
Prepare door for reinstallation:
For stainless steel models with glass doors:
1.Stainless glass doors are flipped upside down to be reversed.
2.Lay the door on it’s side. Remove the plastic hole plug (1) and install in the corner opposite of where it was removed.
3.Remove the plastic hinge bushing (2) and install in the corner opposite of where it was removed.
4.Remove the
5.Remove door actuator (4) from door. Be sure to only remove the two screws holding the actuator to the door. Reinstall the actuator (4) on the opposite end of the door where the nameplate was removed.
6.Install new nameplate where the actuator assembly was removed.
Install top hinge, and door:
1.Reorient the pivot screw so it protrudes the opposite direction from the hinge. Remove the pivot screw from the hinge. Turn the plate over and reinstall the screw.
2.Hold door to keep it from falling.
3.Lift the door on to the bottom hinge.
4.Align flat edge of the hinge with the outer edge of the unit.
5.Install three or four screws, depending on model.
Align and adjust the door:
1.Align and adjust the door, see DOOR ALIGNMENT AND ADJUSTMENT.
Install grille:
Install the grille, see MAINTENANCE section of this guide.
16 |
