U-Line U-CO2175FS-01 Prepare door for reinstallation, Install Door, Align and adjust the door

Page 17

Prepare door for reinstallation.

NOTCH 5

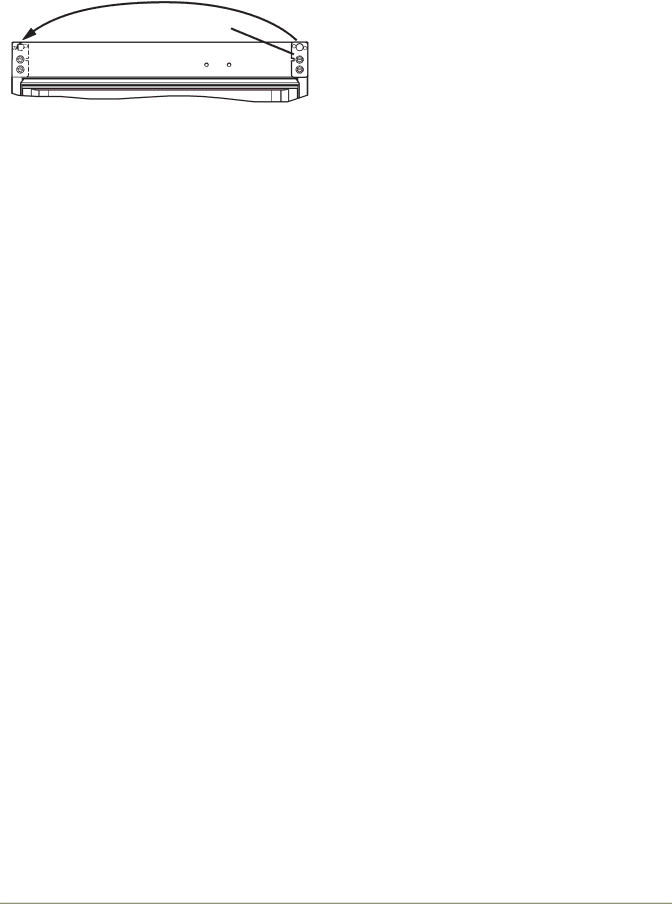

1.Remove plastic hole plug from top of door handle and reinstall on opposite side.

2.With bottom of door facing up, remove pivot plate (5) (two screws).

3.Flip over and install pivot plate on opposite side of door. Ensure notch in plate faces center.

Install Door.

1.Hold door upright and tilted forward.

2.Lift door on to bottom hinge closer inserts.

3.Tilt door forward into position.

4.Hold door to keep it from falling.

5.Reinstall hinge screw pin (1) into top hinge using a Phillips screwdriver.

Align and adjust the door:

Align and adjust the door, see DOOR ALIGNMENT AND ADJUSTMENT on page 12.

14	u-line.com
