Reinstalling the Drawer Front

After the moving the refrigerator to the location where it will be used, reinstall the door(s) and freezer drawer front.

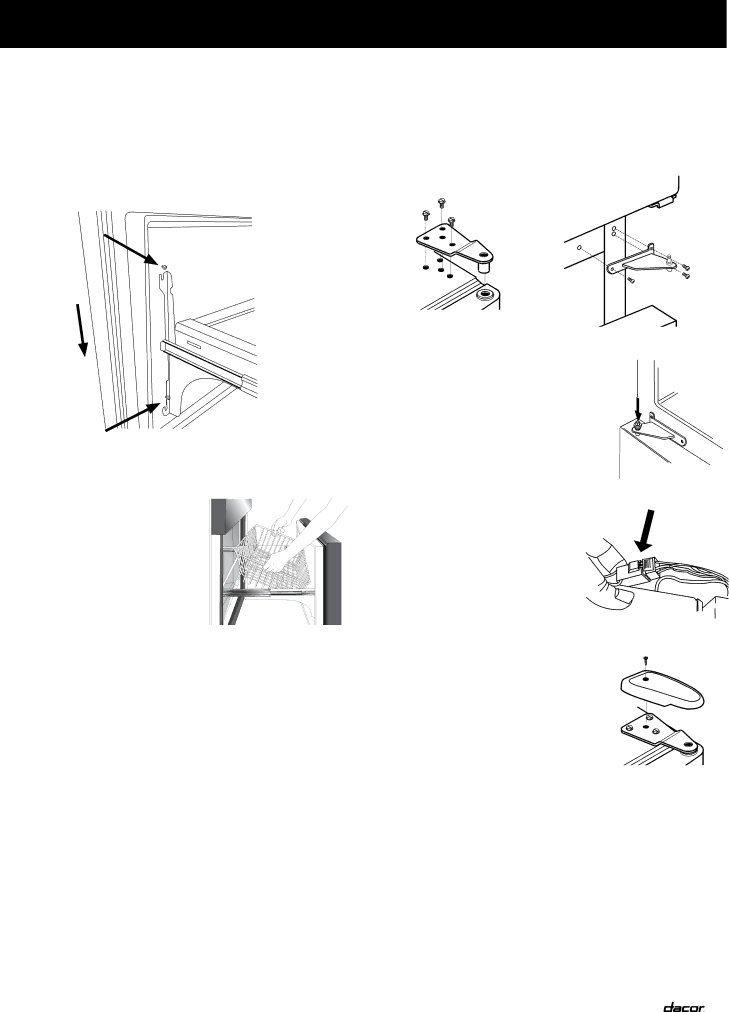

1.Slide the screws on the back of the drawer front into the slots in the drawer brackets on both sides. You may need to move the bottom of the bracket around slightly to get the slot to line up with the screw.

2.Tighten the four front panel screws completely. Do not over- tighten.

3. Place the freezer basket back onto the drawer slides.

Reinstalling the Door(s)

Install the hinge assemblies:

1.Install the top hinge loosely using the existing 5/16” hex head screws.

2.Install the center hinge using the existing

Phillips screws.

Top Hinge

Center Hinge

3. Place the hinge side of the refrigerator door on the center hinge pin.

4. While holding the refrigerator door upright, tighten down the top hinge with a 5/16” hex head driver.

Hinge Pin

5. On 3 door (french door) models, reconnect the wiring plug located on top of the left top hinge.

Wiring Plug

6.Replace the hinge cover using the existing Phillips screw.

Hinge Cover
