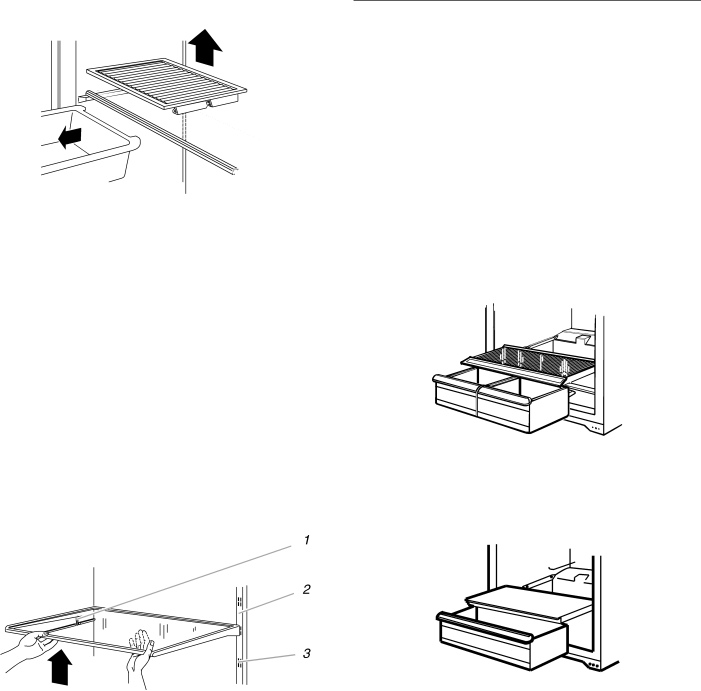

Whirlpool 3VET16GKGW01 Crisper and Crisper Cover, Style To remove the cover Remove meat drawer

Page 13

4.Replace meat drawer.

Style 2

To remove the cover:

Remove meat drawer.

1.Remove meat drawer.

2.Take the half width cover with both hands, lift up the shelf side resting on the side wall of the refrigerator.

3.Turn the cover toward the opposite side wall.

4.Tilt the cover up at front, then tilt cover up at back until rear hook is out of the center shelf support and pull cover toward you.

To replace the cover:

1.Guide the rear cover hooks into the slot of the center support.

2.Tilt the front of the cover up until rear hook drops into slot. Rest cover on side wall. Make sure shelf is firmly supported.

Crisper and Crisper Cover

(onsomemodels)

To remove the crisper(s):

1.Slide crisper(s) straight out to the stop.

2.Lift the front.

3.Slide out the rest of the way.

4.Replace the crisper(s) in reverse order.

Style 1

To remove the plastic cover:

1.Remove crisper(s).

2.Lift cover front and remove the cover support.

3.Lift cover up and slide out.

Style 2

To remove the glass cover:

1.Pull the glass straight out.

2.Replace in reverse order.

1.Lock

2.Center support

3.Slot

13
