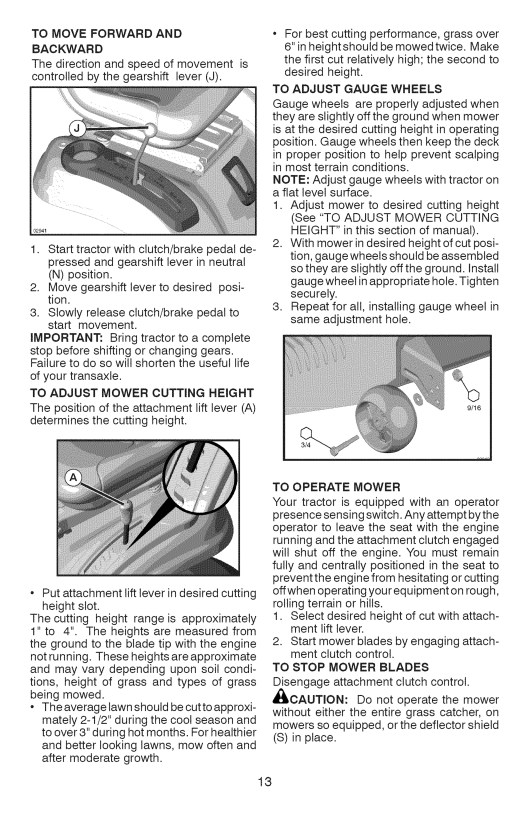

Craftsman 917.28907 To Move Forward BA Ckwa RD, To Adjust Mower Cutting Height, To Operate Mower

Page 13

TO MOVE FORWARD AND

BA CKWA RD

The direction and speed of movement controlled by the gearshift lever (J).

1.Start tractor with clutch/brake pedal de- pressed and gearshift lever in neutral

(N)position.

2.Move gearshift lever to desired posi- tion.

3.Slowly release clutch/brake pedal to start movement.

IMPORTANT: Bring tractor to a complete stop before shifting or changing gears. Failure to do so will shorten the useful life

of your transaxle.

TO ADJUST MOWER CUTTING HEIGHT

The position of the attachment lift lever (A) determines the cutting height.

Put attachment lift lever in desired cutting height slot.

The cutting height range is approximately 1" to 4". The heights are measured from the ground to the blade tip with the engine not running. These heights are approximate and may vary depending upon soil condi- tions, height of grass and types of grass being mowed.

The average lawn should be cutto approxi- mately 2-1/2" during the coot season and to over 3" during hot months. For healthier

and better looking lawns, mow often and after moderate growth.

For best cutting performance, grass over 6" in heightshoutd be mowed twice. Make the first cut relatively high; the second to desired height.

TO ADJUST GAUGE WHEELS

Gauge wheels are properly adjusted when they are slightly off the ground when mower is at the desired cutting height in operating position. Gauge wheels then keep the deck

in proper position to help prevent scalping in most terrain conditions.

NOTE: Adjust gauge wheels with tractor on a flat level surface.

1.Adjust mower to desired cutting height (See "TO ADJUST MOWER CUTTING HEIGHT" in this section of manual).

2.With mower in desired height of cut posi- tion, gauge wheels should be assembled so they are slightly off the ground. Install gauge wheel in appropriate hole. Tighten securely.

3.Repeat for all, installing gauge wheel in same adjustment hole.

TO OPERATE MOWER

Your tractor is equipped with an operator presence sensing switch. Any attempt bythe operator to leave the seat with the engine running and the attachment clutch engaged will shut off the engine. You must remain fully and centrally positioned in the seat to preventthe engine from hesitating or cutting offwhen operating your equipmenton rough, rolling terrain or hills.

1.Select desired height of cut with attach- ment lift lever.

2.Start mower blades by engaging attach- ment clutch control.

TO STOP MOWER BLADES

Disengage attachment clutch control.

Ai_CAUTION: Do not operate the mower without either the entire grass catcher, on

mowers so equipped, or the deflector shield

(S) in place.
