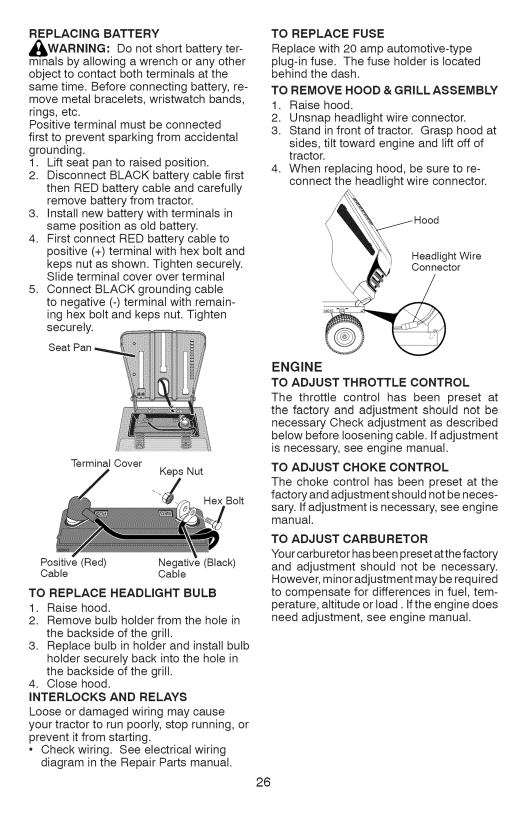

Page 26

REPLACING BATTERY

_ WARNING" Do not short battery ter- minals by allowing a wrench or any other object to contact both terminals at the same time. Before connecting battery, re- move metal bracelets, wristwatch bands,

rings, etc.

Positive terminal must be connected first to prevent sparking from accidental grounding.

1.Lift seat pan to raised position.

2.Disconnect BLACK battery cable first then RED battery cable and carefully remove battery from tractor.

3.Install new battery with terminals in same position as old battery.

4.First connect RED battery cable to positive (+) terminal with hex bolt and keps nut as shown. Tighten securely. Slide terminal cover over terminal

5.Connect BLACK grounding cable to negative (-) terminal with remain- ing hex bolt and keps nut. Tighten securely.

Seat Pan

Terminal Cover

Keps Nut

""_(4'- Hex Bolt

Positive (Red)

Negati\

(Black)

Cable

Cable



TO REPLACE HEADLIGHT BULB

1.Raise hood.

2.Remove bulb holder from the hole in the backside of the grill.

3.Replace bulb in holder and install bulb holder securely back into the hole in the backside of the grill.

4.Close hood.

INTERLOCKS AND RELAYS

Loose or damaged wiring may cause

your tractor to run poorly, stop running, or

prevent it from starting.

Check wiring. See electrical wiring diagram in the Repair Parts manual.

TO REPLACE FUSE

Replace with 20 amp automotive-type plug-in fuse. The fuse holder is located behind the dash.

TO REMOVE HOOD & GRILLASSEMBLY

1.Raise hood.

2.Unsnap headlight wire connector.

3.Stand in front of tractor. Grasp hood at

sides, tilt toward engine and lift off of tractor.

4.When replacing hood, be sure to re- connect the headlight wire connector.

Headlight Wire

Connector

ENGINE

TO ADJUST THROTTLE CONTROL

The throttle control has been preset at the factory and adjustment should not be necessary Check adjustment as described

below before loosening cable. If adjustment is necessary, see engtne manual.

TO ADJUST CHOKE CONTROL

The choke control has been preset at the factory and adjustment should not be neces-

sary. If adjustment is necessary, see engine manual.

TO ADJUST CARBURETOR

Your carburetor has been preset atthe factory and adjustment should not be necessary. However, minor adjustment may be required to compensate for differences in fuel, tem- perature, altitude or load. If the engine does need adjustment, see engine manual.

26
