Craftsman 917.289072, 917.289070, 917.289071 Instalacion DEL Asiento, Para Ajustar EL Asiento

Page 40

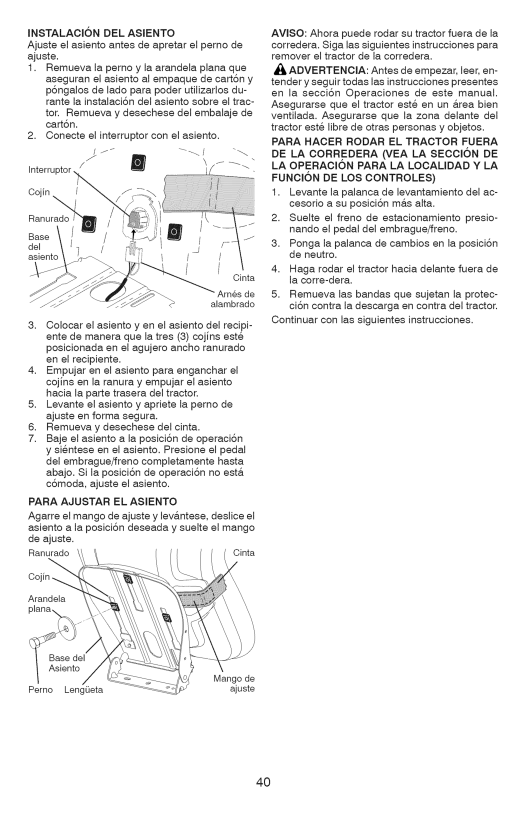

INSTALACION DEL ASIENTO

Ajuste el asiento antes de apretar el perno de ajuste.

1.Remueva la perno y la arandela plans que aseguran el asiento al empaque de cart6n y p6ngalos de lado pars poder utilizarlos du- rante la instalaci6n del asiento sobre el trac-

tor. Remueva y desechese del embalaje de cart6n.

2.Conecte el interruptor con el asiento.

\

Interruptor ,_

Base

del/

J

Cinta

Arnes de alambrado

3.Colocar el asiento yen el asiento del recipi- ente de manera que la tres (3) cojJns este

posicionada en el agujero ancho ranurado en el recipiente.

4.Empujar en el asiento pars enganchar el cojJns en la ranura y empujar el asiento hacia la parte trasera del tractor.

5.Levante el asiento y apriete la perno de ajuste en forms segura.

6.Remueva y desechese del cinta.

7.Baje el asiento a la posici6n de operaci6n

y sientese en el asiento. Presione el pedal

del embrague/freno completamente hasta abajo. Si la posici6n de operaci6n no est& c6moda, ajuste el asiento.

PARA AJUSTAR EL ASIENTO

Agarre el mango de ajuste y lev&ntese, deslice el asiento a la posici6n deseada y suelte el mango de ajuste.

RanuradoCinta

Arandela

Base del



Asiento





Mango de

Perno LengOeta

ajuste

AVlSO: Ahora puede rodar su tractor fuera de la

corredera. Siga las siguientes instrucciones para remover el tractor de la corredera.

At_,ADVERTENCIA: Antes de empezar, leer, en- tender y seguir todas las instrucciones presentes en la secci6n Operaciones de este manual. Asegurarse que el tractor este en un &rea bien ventilada. Asegurarse que la zona delante del tractor este libre de otras personas y objetos.

PARA HACER RODAR EL TRACTOR FUERA

DE LA CORREDERA (VEA LA SECCION DE LA OPERACION PARA LA LOCALIDAD Y LA

FUNCION DE LOS CONTROLES)

1.Levante la palanca de levantamiento del ac- cesorio a su posici6n m&s alta.

2.Suelte el freno de estacionamiento presio- nando el pedal del embrague/freno.

3.Ponga la palanca de cambios en la posici6n de neutro.

4.Haga rodar el tractor hacia delante fuera de la corre-dera.

5.Remueva las bandas que sujetan la protec- ci6n contra la descarga en contra del tractor.

Continuar con las siguientes instrucciones.

40

Image 40
