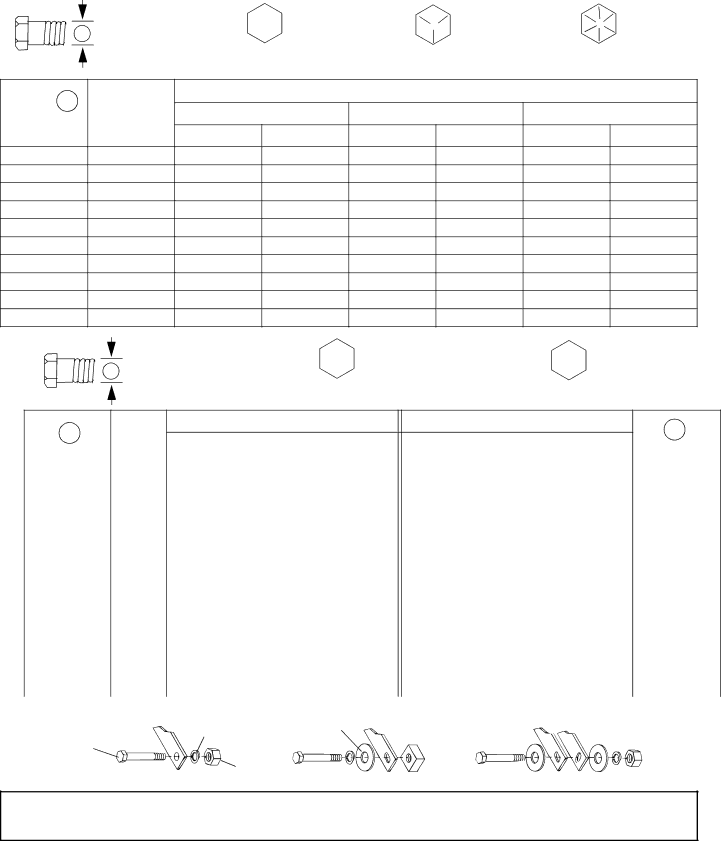

BOLT TORQUE CHART

Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application.

Fasteners must always be replaced with the same grade as specified in the manual parts list.

Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware. Make sure fastener threads are clean and you start thread engagement properly.

All torque values are given to specifications used on hardware defined by SAE J1701 & J1701M JUL96.

SAE SERIES

A TORQUE

CHART

SAE Bolt Head

Identification

SAE Grade 2

SAE Grade 5

SAE Grade 8

(No Dashes)

(3 Radial Dashes)

(6 Radial Dashes)

A







MARKING ON HEAD



















Diameter

Wrench

SAE 2





SAE 5

SAE 8















(Inches)

Size

lbs-ft

N-m

lbs-ft

N-m

lbs-ft

N-m

1/4"

7/16"

6

8

10

13

14

18

5/16"

1/2"

12

17

19

26

27

37

3/8"

9/16"

23

31

35

47

49

67

7/16"

5/8"

36

48

55

75

78

106

1/2"

3/4"

55

75

85

115

120

163

9/16"

13/16"

78

106

121

164

171

232

5/8"

15/16"

110

149

170

230

240

325

3/4"

1-1/8"

192

261

297

403

420

569

7/8"

1-5/16"

306

416

474

642

669

907

1"

1-1/2"

467

634

722

979

1020

1383





METRIC SERIES

8.8

Metric Bolt Head

10.9





A

TORQUE





Metric



Identification

Metric







CHART













Grade 8.8





Grade 10.9



A



COARSE THREAD



FINE THREAD

A



















MARKING ON HEAD





MARKING ON HEAD





Diameter &



















Diameter &



Metric 8.8

Metric 10.9

Metric 8.8

Metric 10.9

Thread Pitch

Wrench

Thread Pitch

















(Millimeters)

Size

N-m

lbs-ft

N-m

lbs-ft

N-m

lbs-ft

N-m

lbs-ft

(Millimeters)























6 x 1.0

10 mm

8

6

11

8

8

6

11

8

6 x 1.0























8 x 1.25

13 mm

20

15

27

20

21

16

29

22

8 x 1.0























10 x 1.5

16 mm

39

29

54

40

41

30

57

42

10 x 1.25























12 x 1.75

18 mm

68

50

94

70

75

55

103

76

12 x 1.25























14 x 2.0

21 mm

109

80

151

111

118

87

163

120

14 x 1.5























16 x 2.0

24 mm

169

125

234

173

181

133

250

184

16 x 1.5























18 x 2.5

27 mm

234

172

323

239

263

194

363

268

18 x 1.5























20 x 2.5

30 mm

330

244

457

337

367

270

507

374

20 x 1.5























22 x 2.5

34 mm

451

332

623

460

495

365

684

505

22 x 1.5























24 x 3.0

36 mm

571

421

790

583

623

459

861

635

24 x 2.0























30 x 3.0

46 mm

1175

867

1626

1199

1258

928

1740

1283

30 x 2.0























Typical Washer



Flat Washer

Installations

Lock Washer



Bolt







Nut

8/9/00







48Appendix

Bolt Torque & Size Charts (Rev. 8/14/2002)
