Section 1: Assembly and Set-Up

Tractor Requirements

Weight & Horsepower

Tractor horsepower and weight must be capable of controlling the cutter under all operating conditions. Tractors outside the horsepower range must not be used.

•RCR2596 cutters

Three-point. . . . . . . . 45-110 HP Pull-type . . . . . . . . . . 30-110 HP

3-Point Hitch

The lower 3-Point arms of the 3-Point hitch must be stabilized to prevent side-to-side movement. Most tractors have sway blocks or adjustable chains for this purpose. Category of hitch is dependent upon the series of cutter being used.

•RCR2596 (Category l or ll hitch)

•RCR2510 & RCRM2510 (Category ll or lll hitch)

•RCR2510 & RCRM2510 cutters

Three-point. . . . . . . . 50-110 HP Pull-type . . . . . . . . . . 35-110 HP

NOTE: Ballast may need to be added to your tractor to maintain steering control. Refer to your tractor’s operator manual to determine if one needs additional ballast.

PTO Type & Speed

Tractor’s rear power take-off (PTO) speed and spline type must be capable of matching the cutter’s PTO type and speed.

•RCR2596 and RCR2510 cutters

540 RPM 1 3/8”-6 spline rear power take-off

•RCRM2510 cutters

1000 RPM 1 3/8”-21 spline rear power take-off

Pull-Type Hitch

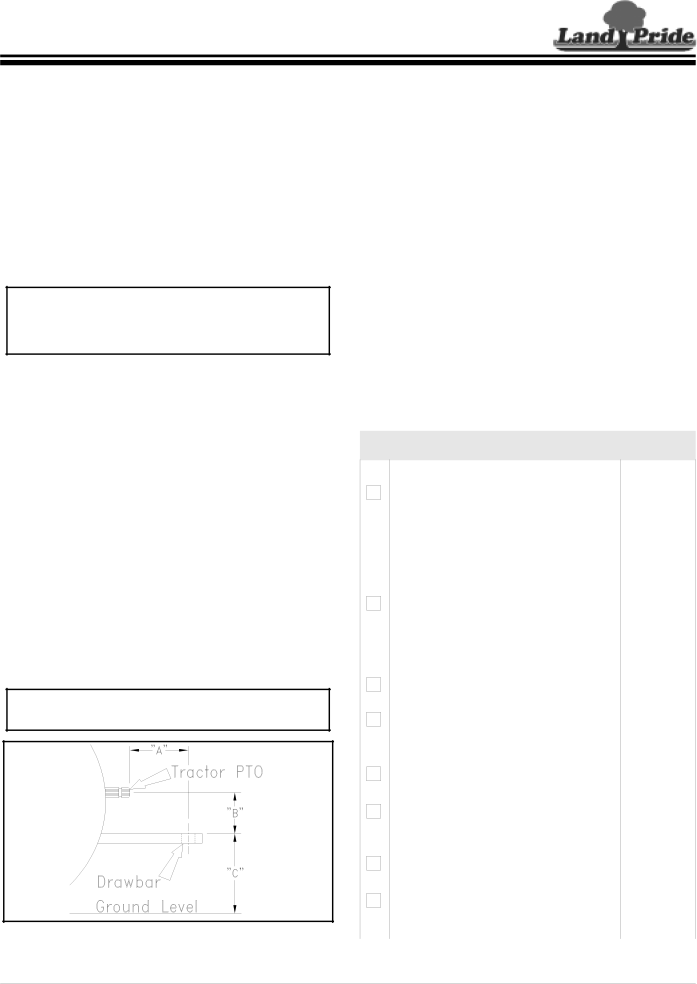

Refer to Figure 1-1

Distances between center of drawbar hitch pin hole to end of tractor PTO shaft (“A” dimension) and from top of drawbar hitch to center of PTO shaft (“B” dimension) must be maintained when using the Pull-type hitches.

•“A” = 14" for 540 rpm

•“A” = 16" for 1000 rpm

•“B” = 8” for 540 and 1000 rpm

IMPORTANT: PTO damage may occur if distances “A” and “B” are not properly maintained.

22273

PTO to Drawbar Distances

Figure 1-1

Dealer Preparations

Read and understand the operator’s manual for your cutter. An understanding of how it works will aid in the assembly and setup of your cutter.

This Rotary Cutter has been partially assembled at the factory. However, some assembly will be necessary to attach the hitch, driveline and guards to the cutter.

It is best to go through the Pre-Assembly Checklist before assembling the cutter. Speed up your assembly task and make the job safer by having all the needed parts and equipment readily at hand.

Pre-Assembly Checklist







Check

Reference







Fasteners and pins that were shipped

Operator’s













with the cutter. NOTE: All hardware from

Manual













the factory has been installed in the









location where it will be used. If a part or









fastener is temporarily removed for









assembly reasons, remember where it









goes.Keep the parts separated.



















Be sure the parts get used in the correct

Operator’s













location. By double checking while you

Manual













assemble, you will lessen the chance of









using a bolt incorrectly that may be









needed later.



















All grease fittings are in place and

Section 5













lubricated.

Page 32























Safety labels are correctly located and

Safety







legible. Replace if damaged.

Information















pg. 1

















Inflate tires to specified PSI air pressure.

Section 8













Tighten wheel bolts to specified torque.

Page 38























Red and amber reflectors are correctly

Safety













located and visible when the cutter is in

Information













the transport position.

Page 1

















Have a minimum of 2 people at hand

Operator’s













while assembling the cutter.

Manual























Have a fork lift or loader along with

Operator’s













chains and safety stands that are sized

Manual













for the job ready for the assembly task.













10 RCR2596, RCR2510 and RCRM2510 Rotary Cutters 312-753M

5/09/08
