Honda Power Equipment H1000, H3000 manual Swirl Guide a

1.DEALER INSTALLATIONINSTRUCTIONS

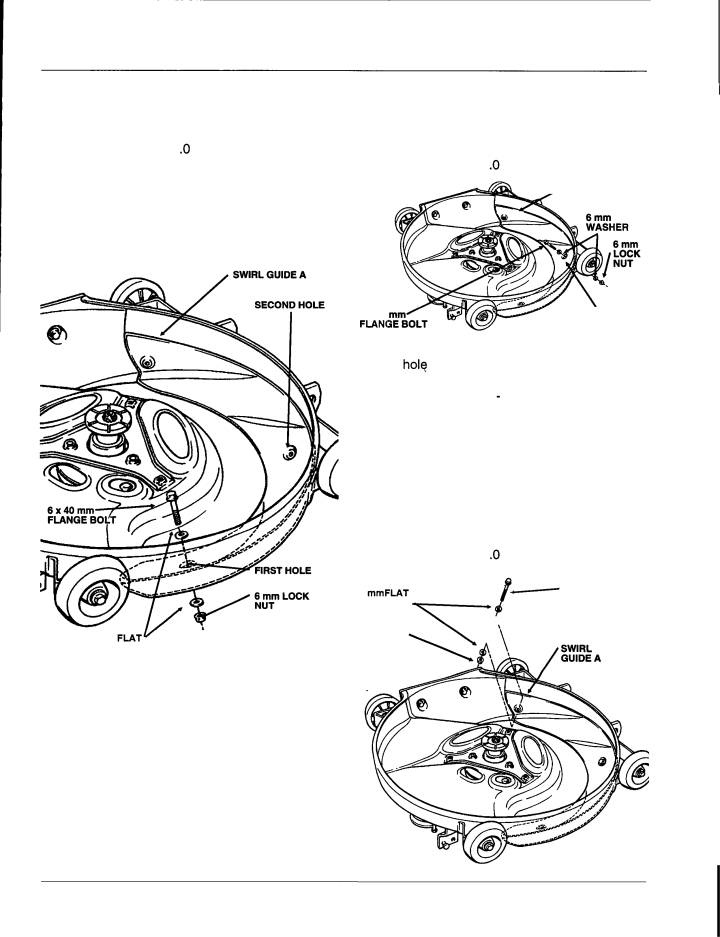

7.Installa 6 x 40 mm flange bolt, 6 mm washers, and a 6 mm lock nut in the first hole, as shown.

Tighten the 6 mm nut and bolt to a torque value of 7.2ft-lb (1.O kg-m).

To assure a good fit, mower deck holes must be drilled in sequence, and swirl guide A must be secured with nuts and bolts before drilling the next hole.

9.Installa 6 x 40 mm flange bolt, 6 mm washers, and a 6 mm lock nut in the second hole, as shown.

Tighten the 6 mm nut and bolt to a torque value of 7.2 ft-lb (1.O kg-m).

SWIRL GUIDE A

FLAT iER

6 mm FLATv

WASHERS

8. Drillthe second hole in the mower deck, using the hole in swirl guide A as a drill guide.

Use a 1/4 inch (6.2 - 6.4 mm) drill. Wear eye protection when drilling.

Remove any burrs from the hole.

6 x 4 0	SECOND HOLE
FLAN(

10.Drill the third hole in the mower deck, using the hole in swirl guide A as a drill guide.

Use a 1/4 inch (6.2 - 6.4 mm) drill. Wear eye protection when drilling.

Remove any burrs from the hole.

11. Installa 6 x 55mmflange bolt, 6 mm washers, and a 6 mm lock nut in the third hole, as shown.

Tighten the 6 mm nut and bolt to a torque value of 7.2 ft-lb (1.O kg-m).

6 mmFLAT		..- 6 x 55 mm
WASHERS	?	FLANGE BOLT
	\

6 mm \

LOCK \’\

~

4
