Countax manual Air & Cooling C Series Garden Tractor, AIR INTAKE/COOLING System

Page 19

Air & Cooling - C Series Garden Tractor

AIR INTAKE/COOLING SYSTEM

The cooling fan also supplies air to the carburettor so if the engine won’t start or if it is stalling or overheating – check the cooling fan system and the air filters.

1.Check that debris is not caught in the cooling fan cover – clean with a stiff brush.

2.Remove the air-filter cartridges and check that debris is not gathered on the Pre-Cleaner.

After these checks you must consider whether the air filter cartridges should be replaced.

Figures 47 & 48 illustrate the Briggs & Stratton air filters for Single and Twin Cylinder engines. Great care is needed when re-assembling them, make sure that all components are replaced in the correct order and that they are secure. If in any doubt, Countax recommends that you should consult your dealer or the Countax Service Department for advice.

Check with your engine manufacturer’s handbook for service times of the air-filter pre-cleaner.

Please Note: - BEFORE YOU START

IMPORTANT

The information contained on this, and the following pages is given on the understanding that Countax accepts no responsibility for work carried out by a cus- tomer or for any damage thus caused, whether or not the service instructions have been misunderstood. To be sure that your warranty terms are not breached, service work should only be carried out by your dealer.



Clean out chaff and dirt

Cooling Fan Cover







Fig 50







-

P a g e

1 7

-



Single Cylinder Air Filter

Cover Knob



Air Intake



Cartridge Knob

Cover



Stud

Cartridge & Pre-Cleaner



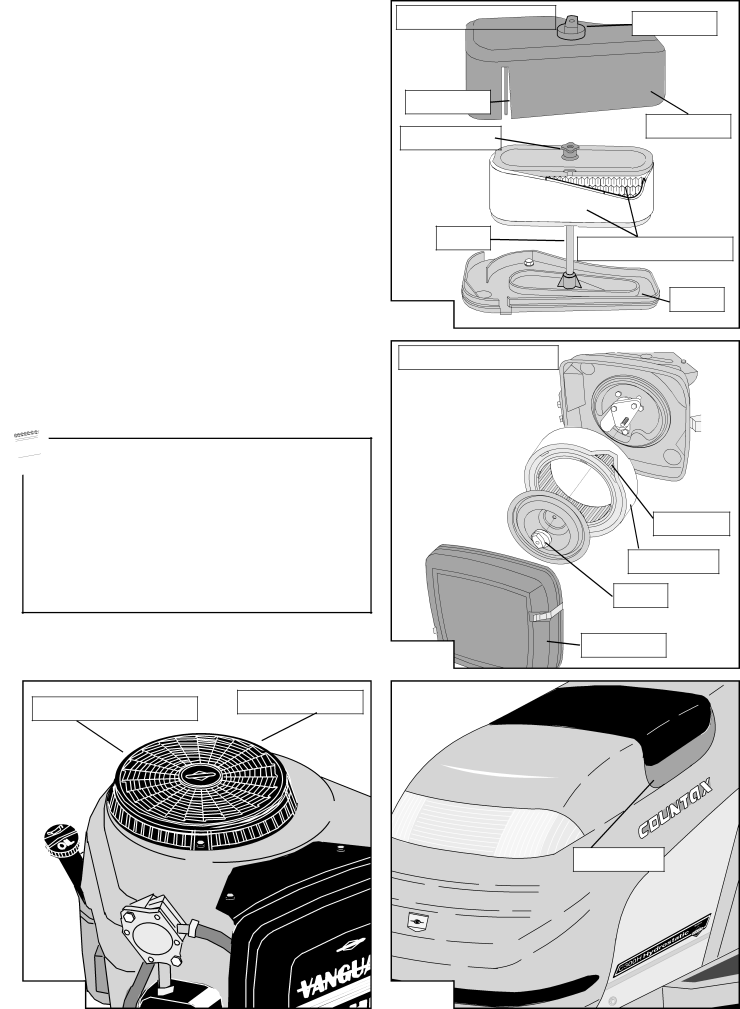

Fig 47

Base



Twin Cylinder Air Filter





Cartridge



Pre-Cleaner



Knob

Fig 48

Cover



Air Vents

Fig 49
