Page 20

C Series Garden Tractor - Battery & Spark Plug

BATTERY - Fig 51

The battery is located underneath the fuel tank of your C Series tractor. As long as you follow these simple maintenance procedures, the battery can last many years, but always check with your dealer if you feel that the battery is leaking or faulty.

As with a car, it is VERY important not to lay metal tools across the terminals of the battery. Ensure that the terminal connectors are tightly secured and not exposed to any foreign metal objects loose in the battery compartment.

Regularly clean the terminals and coat with petroleum jelly and ensure electrolyte levels are topped up to the correct level, taking care not to over-fill.

Check that the battery terminals are correctly placed – green neutral (-) red positive (+). The battery should be periodically charged throughout the winter lay-off. It has run down during normal summer use there could be several causes.

1.Distilled water not topped up.

2.Ignition left on.

3.10amp fuse needs replacing.

4.The battery needs replacing.

If ‘1’, ‘2’ and ‘3’ appear not to be applicable, first re-charge the battery using a trickle charger and await a second failure before calling your dealer. Alternatively the engine can be started using jump leads and the battery re-charged in use.

SPARK PLUG - Fig 52

Please note the make of the engine used in your tractor and be sure to fit the correct spark plug and set to the correct gap.

See engine Manufacturer’s handbook for relevant spark plug data.

HEADLIGHTS - Fig 53

To replace a headlight bulb, follow this sequence:

1.Lift the bonnet and locate and unscrew bulb holder by holding firmly and rotating in an anti-clockwise direction. Be careful not to damage the reflector.

2.Remove the bulb from holder by carefully pushing it anti- clockwise and then pulling to release.

3.To fit replacement bulb (12v 21w) push into holder and rotate clockwise.

4.Insert bulb and bulb holder carefully into the headlight and rotate clockwise until it locates.

NOTE: - If both lights have gone off, it could be the fuse on the Printed Circuit Board (PCB) see page 19).

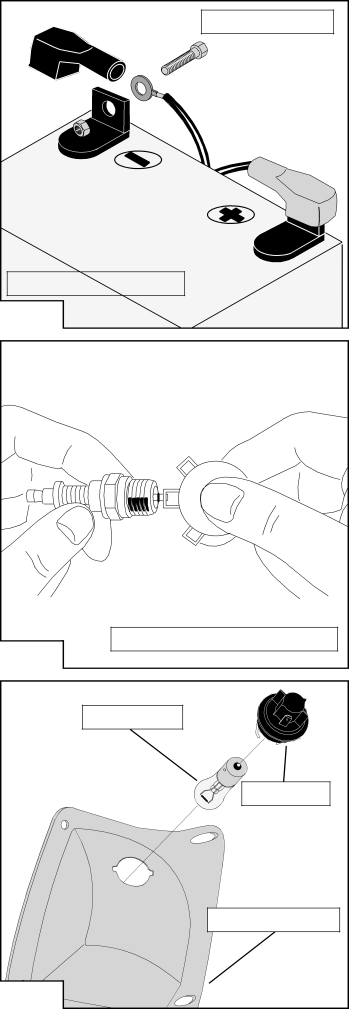

Battery Terminals

Max charge rate: 1.5 amps

Fig 51

Set Spark Plug to the Correct Gap

Fig 52

Bulb (12v 21w)









Bulb Holder



Headlight Reflector



Fig 53







-
