ZMT Owner’s Manual
5ADJUSTMENT AND SETTING UP
5.1Adjustment of the height of cut is obtained by shifting the flail head roller in order to suit the material to be cut and the required degree of chopping (Figure 13).

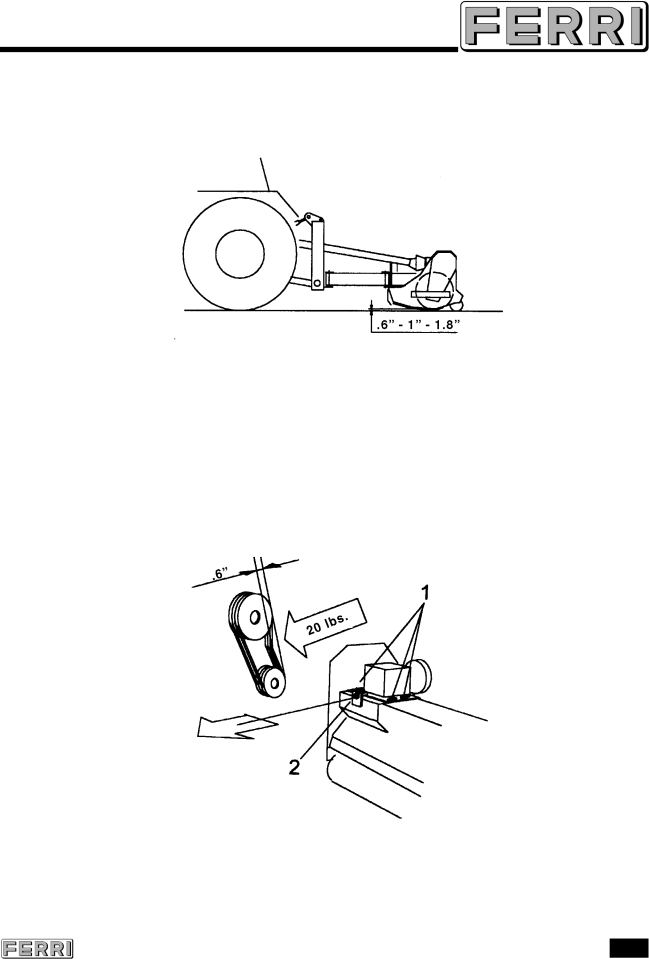

Figure 13
IMPORTANT: Flails must never touch the ground.
5.2Adjusting belt tension
This operation must be carried out with the shredder standing on the ground, the power takeoff disconnected and the iginition key removed.
Remove the belts guard, loosen the 4 screws (1) fixing the gearbox, adjust the link
(2) to obtain a belt deflection of no more than .6”. with 10 lbs. of pressure applied (see Figure 14).
Figure 14
At the end of the operation, tighten the 4 screws (1) holding the gearbox and reassemble the belts guard.
13
