Hunter Fan 41462-01 Attaching the Switch Housing, Attaching the Upper Switch Housing

Page 16

®

STEP 8 - ATTACHING THE SWITCH HOUSING

The switch housing is made up of two sections: the upper switch hous- ing, and the lower switch housing.

ATTACHING THE UPPER SWITCH HOUSING

1.Partially install two #6-32 x 3/8" housing assembly screws into the switchhousingmountingplateas shown in Figure 8a.

Switch

Housing

Housing

Assembly

Mounting

Screw

Plate

Wires for



Optional

Upper

Light Kit



Switch



Housing



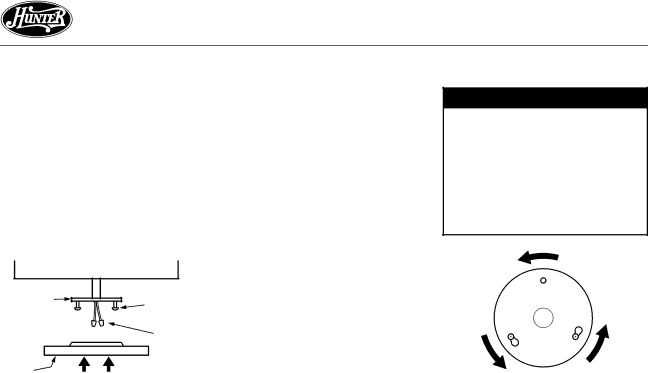

Figure 8a - Attaching Upper Switch Housing to Switch Housing Mount- ing Plate

2.Feed the two optional accessory light kit wires with the attached wire nuts through the center opening of the upper switch housing. See Figure 8a.

3.Align the keyhole slots in the up- perswitchhousingwiththehous- ing assembly screws installed in sub-step 1.

4.Turn the upper switch housing counterclockwise until the hous- ing assembly screws are firmly situated in the narrow end of the keyhole slots as shown in Figure 8b. Install the one remaining #6- 32 x 3/8" housing assembly screw into the third hole in the upper switch housing. Tighten all three screws firmly.

CAUTION

Make sure the upper switch housing is securely attached to the switch housing mounting plate. Failure to properly at- tach and tighten all three hous- ing assembly screws could re- sult in the switch housing and light fixture falling.

Figure 8b - Mounting the Upper Switch Housing

41462-01 10/14/2005

16
