ADDONICS TECHNOLOGIES

Model: ADIDEU2

Installation Guide

Front View

4-Pin Floppy

3. Using the provided Y-power cable, connect the 4-pin

floppy connector to the power connector of the



Power Connector

B-Type USB



converter. This will provide power to the converter.

Connector





USB Pin

Header

4.

At the other end of the Y-power cable is the 4-pin Molex

Back View

power connector that you connect to the hard drive.

IDE Connector

Note: It is required to set up the IDE hard drive you are connecting to the converter as a MASTER device.

1.Locate the 40-pin IDE connector of your IDE drive.

5.Now connect the B-type USB cable to the USB port on the converter or use the USB pin header cable.

4-pin Molex

Power Connector

40-pin IDE Connector

Master or Slave



Jumper Settings

2.Connect the converter board to the IDE connector of the hard drive.

B-Type USB cable

USB Pin Header



cable

TECHNICAL SUPPORT

Email:http://www.addonics.com/sales/query/

Internet:http://www.addonics.com

Technical Support (8:30 am to 6:00 pm PST)

Phone: 408 433-3855

Email: http://www.addonics.com/support/query/

Page 1
Image 1

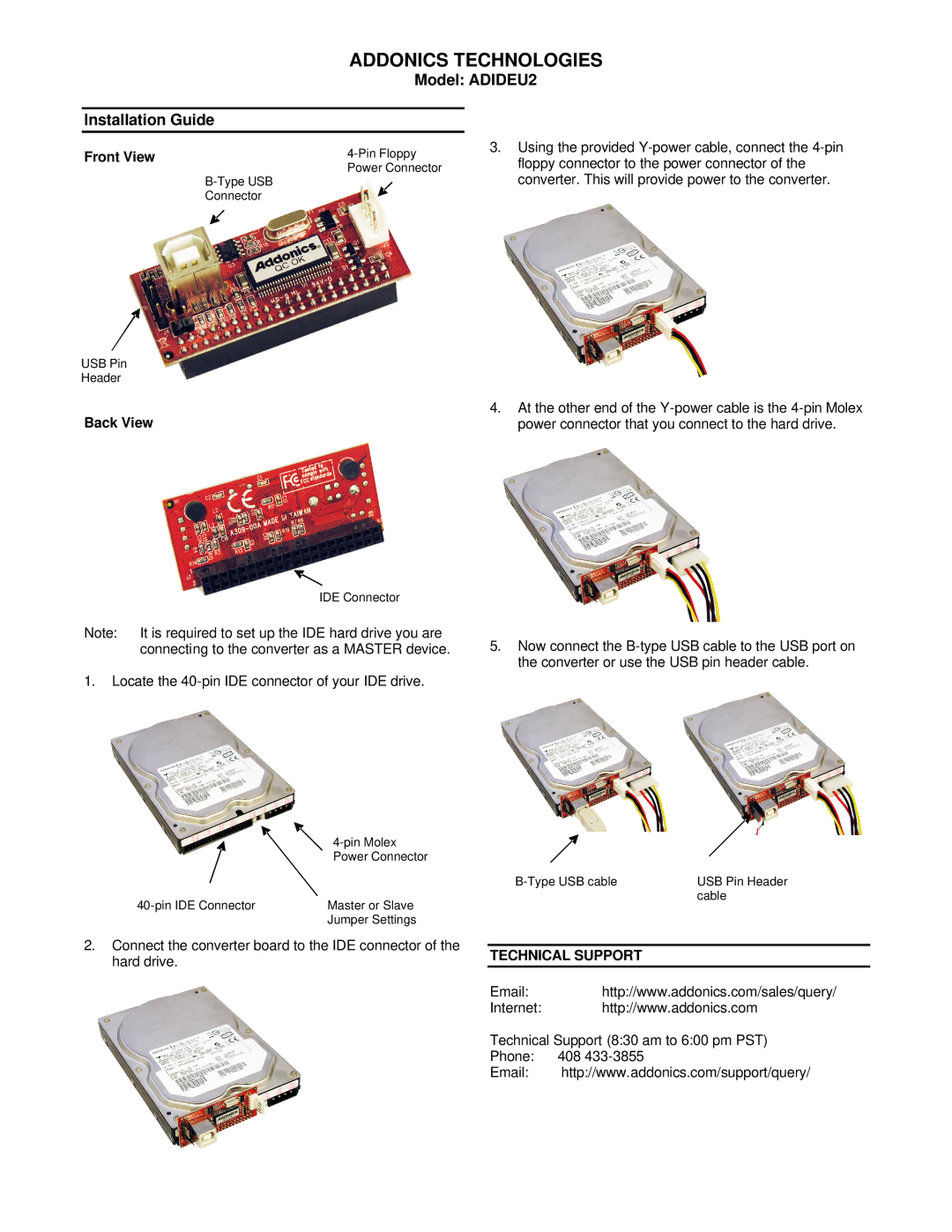

Addonics Technologies manual Addonics Technologies, Model ADIDEU2 Installation Guide, Front View, Back View
