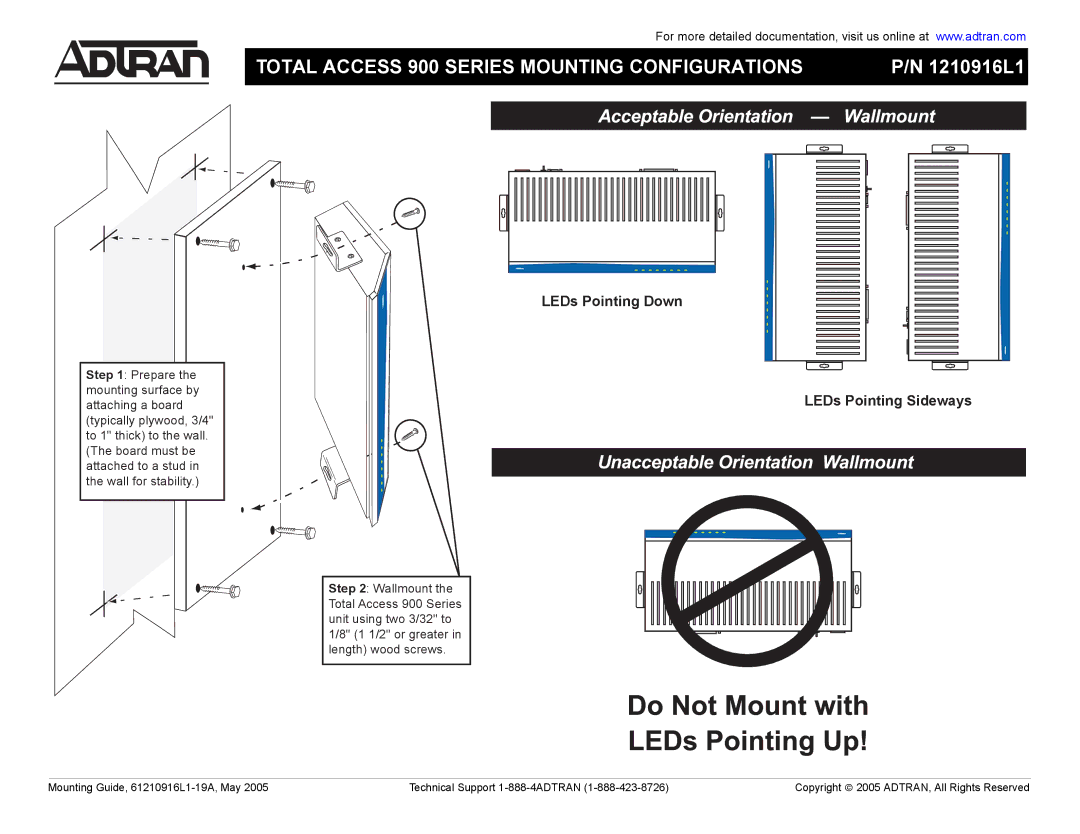

Step 1: Prepare the mounting surface by attaching a board (typically plywood, 3/4" to 1" thick) to the wall. (The board must be attached to a stud in the wall for stability.)
For more detailed documentation, visit us online at www.adtran.com
TOTAL ACCESS 900 SERIES MOUNTING CONFIGURATIONS | P/N 1210916L1 | ||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LEDs Pointing Down
LEDs Pointing Sideways
Step 2: Wallmount the Total Access 900 Series unit using two 3/32" to 1/8" (1 1/2" or greater in length) wood screws.
