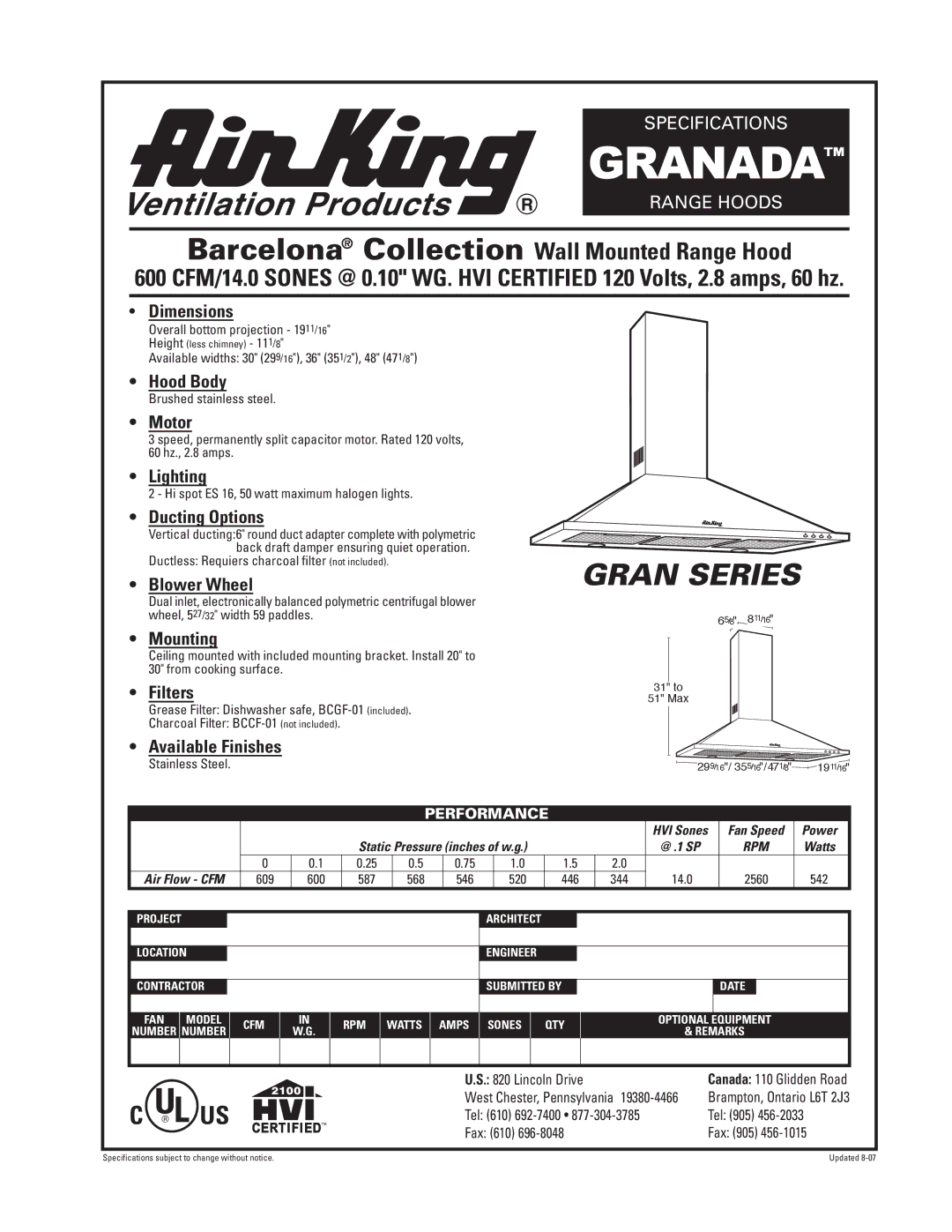

SPECIFICATIONS

GRANADA™

RANGE HOODS

Barcelona® Collection Wall Mounted Range Hood

600 CFM/14.0 SONES @ 0.10" WG. HVI CERTIFIED 120 Volts, 2.8 amps, 60 hz.

•Dimensions

Overall bottom projection - 1911/16" Height (less chimney) - 111/8"

Available widths: 30" (299/16"), 36" (351/2"), 48" (471/8")

•Hood Body

Brushed stainless steel.

•Motor

3 speed, permanently split capacitor motor. Rated 120 volts,

60 hz., 2.8 amps.

•Lighting

2 - Hi spot ES 16, 50 watt maximum halogen lights.

•Ducting Options

Vertical ducting:6" round duct adapter complete with polymetric back draft damper ensuring quiet operation.

Ductless: Requiers charcoal filter (not included).

•Blower Wheel

Dual inlet, electronically balanced polymetric centrifugal blower wheel, 527/32" width 59 paddles.

GRAN SERIES

65/8" 811/16"

•Mounting

Ceiling mounted with included mounting bracket. Install 20" to 30" from cooking surface.

•Filters

Grease Filter: Dishwasher safe, BCGF-01 (included).

Charcoal Filter: BCCF-01 (not included).

•Available Finishes

Stainless Steel.

31" to

51" Max

299/16"/ 355/16"/471/8" 1911/16"

PERFORMANCE

HVI Sones

Fan Speed

Power

Static Pressure (inches of w.g.)

@ .1 SP

RPM

Watts

0

0.1

0.25

0.5

0.75

1.0

1.5

2.0

14.0

2560

542

Air Flow - CFM

609

600

587

568

546

520

446

344

PROJECT

ARCHITECT

LOCATION

ENGINEER

CONTRACTOR

SUBMITTED BY

DATE

FAN

MODEL

CFM

IN

RPM

WATTS

AMPS

SONES

QTY

OPTIONAL

EQUIPMENT

NUMBER

NUMBER

W.G.

& REMARKS

CUS

U.S.: 820 Lincoln Drive	Canada: 110 Glidden Road
West Chester, Pennsylvania 19380-4466	Brampton, Ontario L6T 2J3
Tel: (610) 692-7400 • 877-304-3785	Tel: (905) 456-2033
Fax: (610) 696-8048	Fax: (905) 456-1015

Specifications subject to change without notice. Updated 8-07
