Albatron Anniversary Special Edition PX845PEV-800

Headers & Jumpers

Front USB Headers: USB2 / USB3

1 2

+5V +5V

DATA_A- DATA_B-

DATA_A+ DATA_B+

Ground Ground

NC OVC

9 10

USB2

1 2

PhoenixPCI5

Bios

IrDA

FDC

LAN

CHIP

PCI4



PCI3













































PCI2

PCI1

Winbond W83627HF

ATX

PRT/COM

USB/LAN

KB/MS





12V









AUXFAN

















Intel 82845PE

U10







Soc ket478













AGP



























U6

















+5V +5V

DATA_A- DATA_B-

DATA_A+ DATA_B+

Ground Ground

NC OVC

9 10

USB3



USB2













USB3



CHASFAN

















SW/LED



























SPEAKER

CASE OPEN













JP1













Intel 82801DB

U17

BAT1



CPUFAN





DIMM1

DIMM2

DIMM3

IDE2

ATX_PWR

IDE1



USB Bracket (2 Ports or 4 Ports)

You can connect the USB bracket to the USB2 and USB3 Headers.

*If you are using USB 2.0 devices, you will need to install the USB 2.0 driver from the Microsoft® website.

Case Open Warning connector: CASE OPEN

This connector is used to notify the user when the computer case has been previously opened. To configure this functionality, your computer case must be equipped with a “case open” cable which you need to attach to the CASE OPEN connector. Also, you must enable CASE OPEN warning functionality in the BIOS setup utility. When your computer case is opened, your system will display alert messages upon boot up. Note that your computer case must be equipped with a “case open” cable.

Caseop- 1

PhoenixPCI5

Bios

IrDA

FDC

LAN

C HIP

PCI4



PCI3

























PCI2

PCI1

Winb ond W83627HF

ATX

PRT/COM

USB/LAN

KB/MS





12V









AUXFAN

















Intel 82845PE

U10







Soc ke t 478













AGP



























U6

















Ground 2

CASE OPEN



USB2







USB3



CHASFAN





















SPEAKER

CASE OPEN









JP1





Intel 82801DB

U17

BAT1

DIMM1

CPUFAN







DIMM2









DIMM3



IDE2ID







ATX_PWR

E1









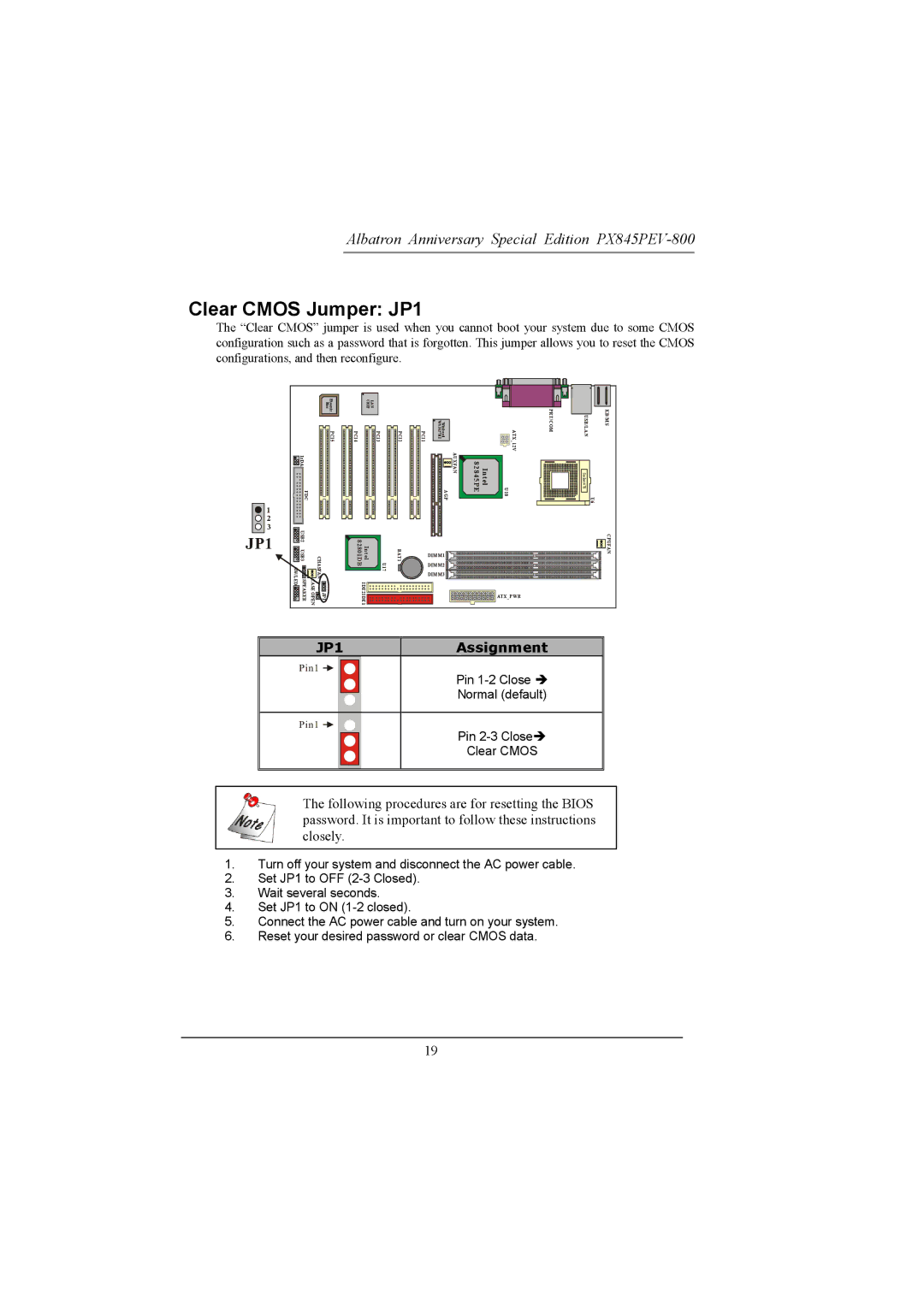

18
