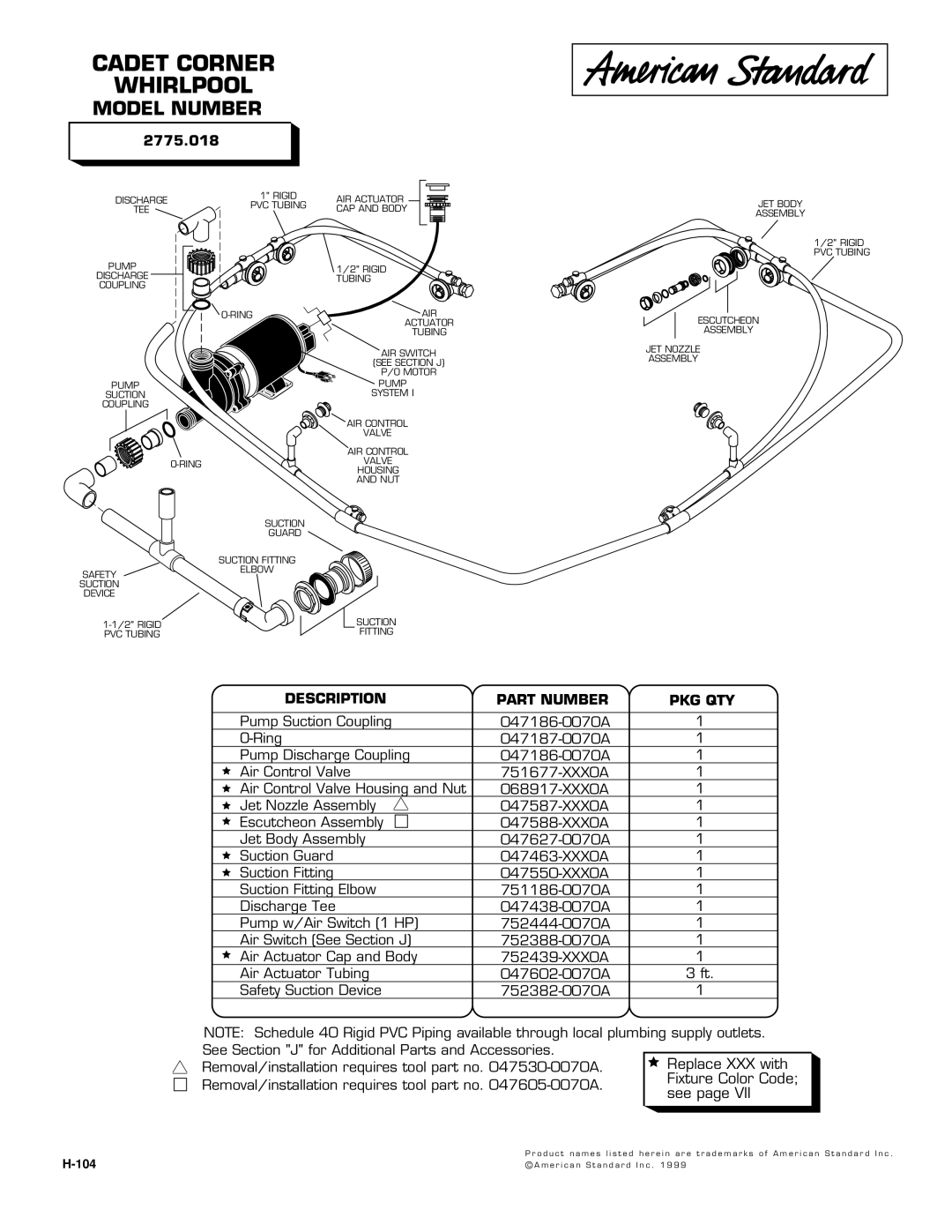

CADET CORNER
WHIRLPOOL
MODEL NUMBER
2775.018
DISCHARGE | 1" RIGID | |
PVC TUBING | ||
TEE | ||
|
PUMP
DISCHARGE
COUPLING
PUMP
SUCTION
COUPLING
SUCTION
GUARD
SUCTION FITTING
SAFETYELBOW SUCTION
DEVICE
AIR ACTUATOR
CAP AND BODY
1/2" RIGID TUBING
AIR
ACTUATOR
TUBING
AIR SWITCH
(SEE SECTION J)
P/O MOTOR
PUMP
SYSTEM I
AIR CONTROL
VALVE
AIR CONTROL
VALVE
HOUSING
AND NUT
SUCTION
FITTING
JET BODY
ASSEMBLY
1/2" RIGID PVC TUBING
ESCUTCHEON
ASSEMBLY
JET NOZZLE
ASSEMBLY
DESCRIPTION | PART NUMBER | PKG QTY |
Pump Suction Coupling | 1 | |
1 | ||
Pump Discharge Coupling | 1 | |
Air Control Valve | 1 | |
Air Control Valve Housing and Nut | 1 | |
Jet Nozzle Assembly | 1 | |
Escutcheon Assembly | 1 | |
Jet Body Assembly | 1 | |
Suction Guard | 1 | |
Suction Fitting | 1 | |
Suction Fitting Elbow | 1 | |
Discharge Tee | 1 | |
Pump w/Air Switch (1 HP) | 1 | |
Air Switch (See Section J) | 1 | |
Air Actuator Cap and Body | 1 | |
Air Actuator Tubing | 3 ft. | |
Safety Suction Device | 1 |
NOTE: Schedule 40 Rigid PVC Piping available through local plumbing supply outlets. See Section "J" for Additional Parts and Accessories.
Removal/installation requires tool part no.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f A m e r i c a n S t a n d a r d I n c . | |
C A m e r i c a n S t a n d a r d I n c . 1 9 9 9 |
